frenak+jullien, Cardin Julien and m+mathieu holdrinet proudly introduce their work on the new Planétarium du Jardin des sciences, which has opened its doors in a redesigned garden located at the heart of the Université de Strasbourg. Located along Avenue de la Victoire, its strategic position makes it a beacon in the city.

To picture the sky, imagine the cosmos, talk about astronomy: the program’s dreamlike dimension inspired the architectural team led by frenak+jullien (France), with Cardin Julien (Canada), associate architects, and m+mathieu holdrinet (France), project architect, helping to create the building’s singular form.

A connection to the sky and the earth

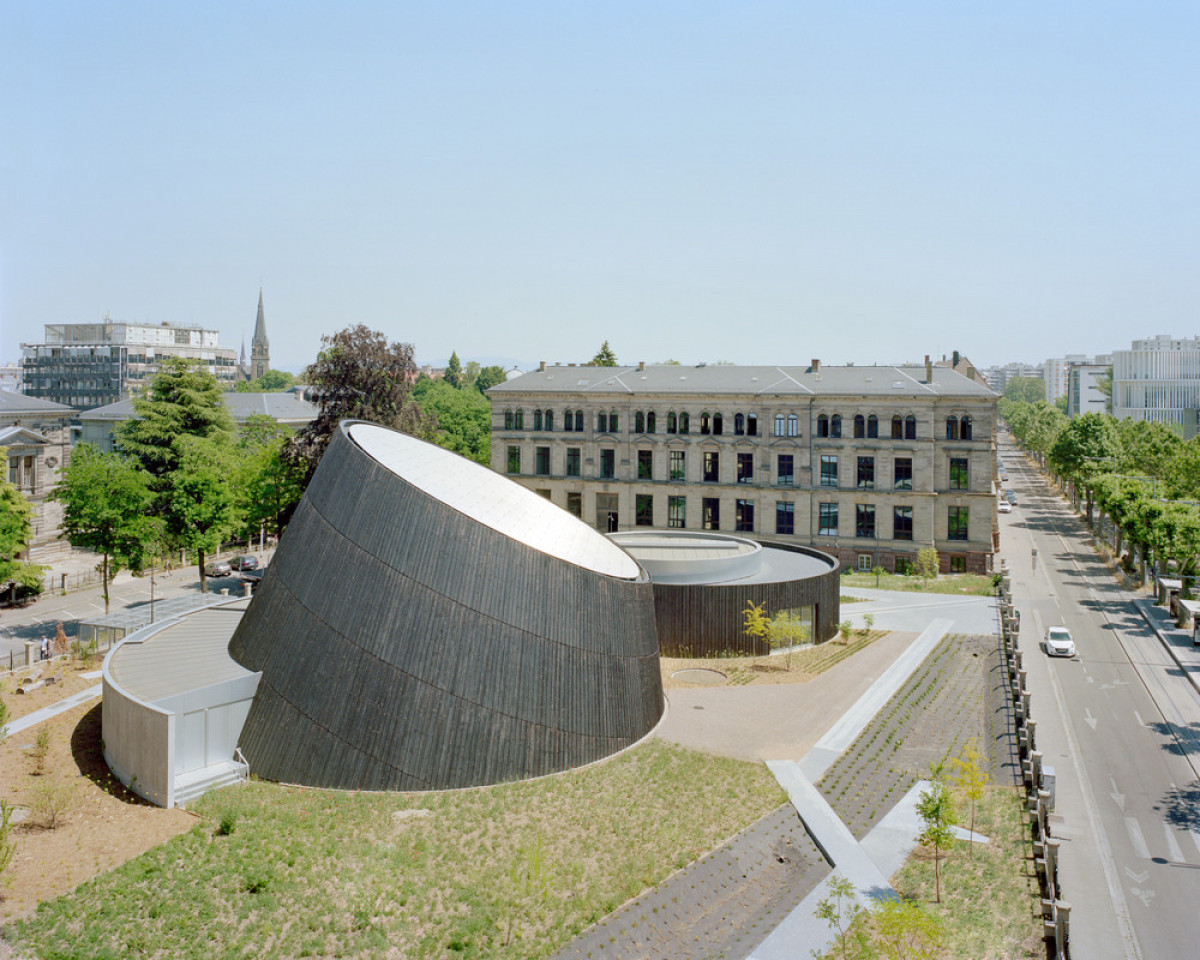

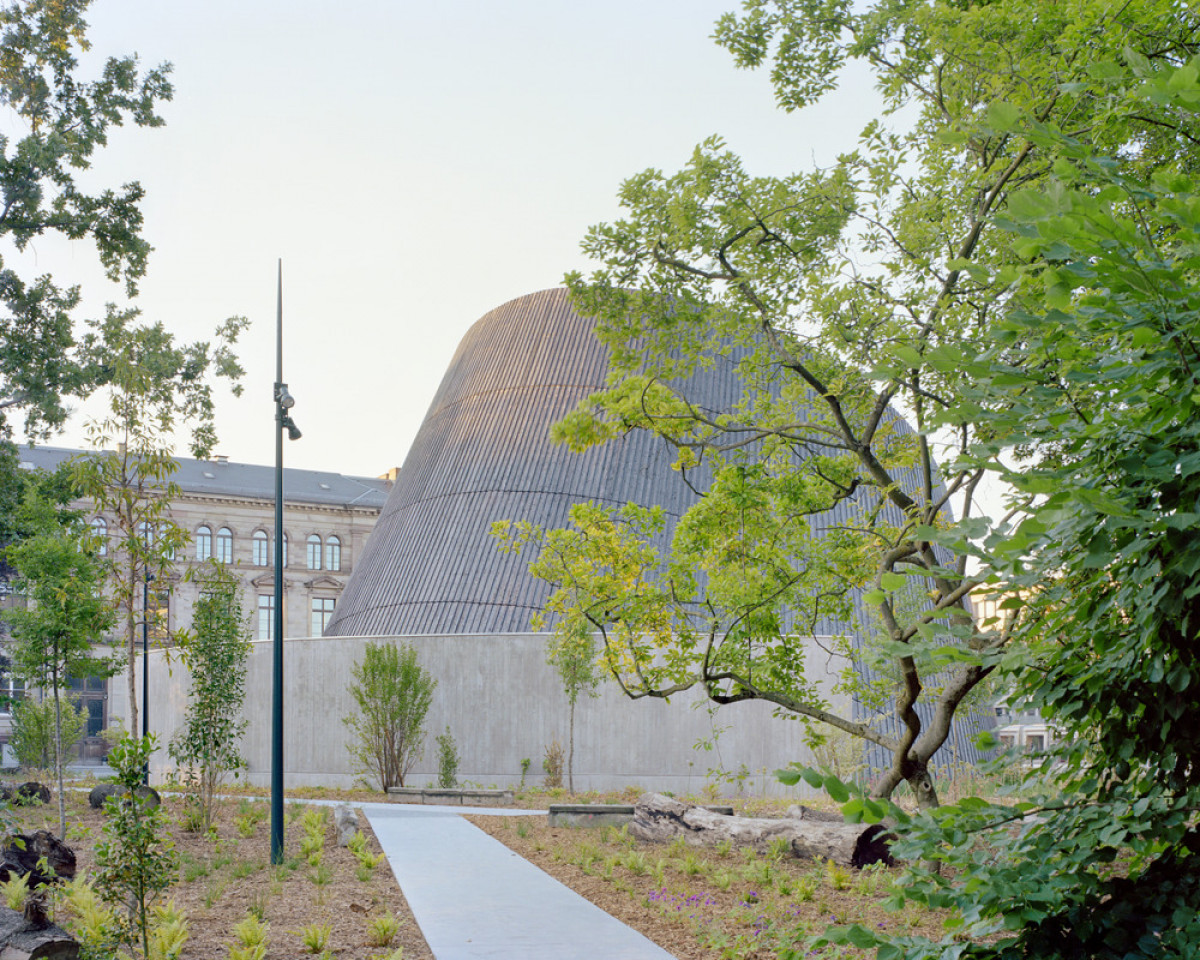

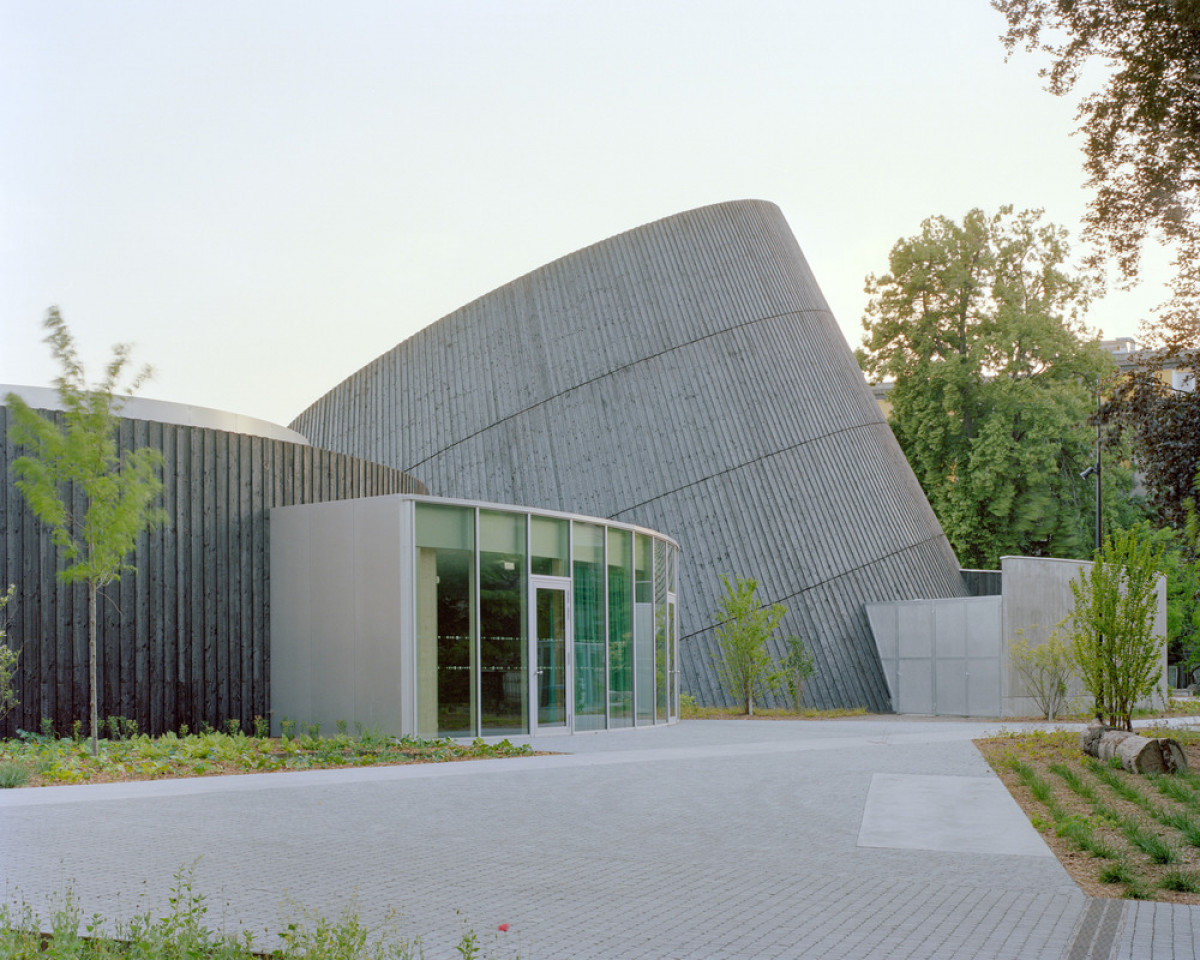

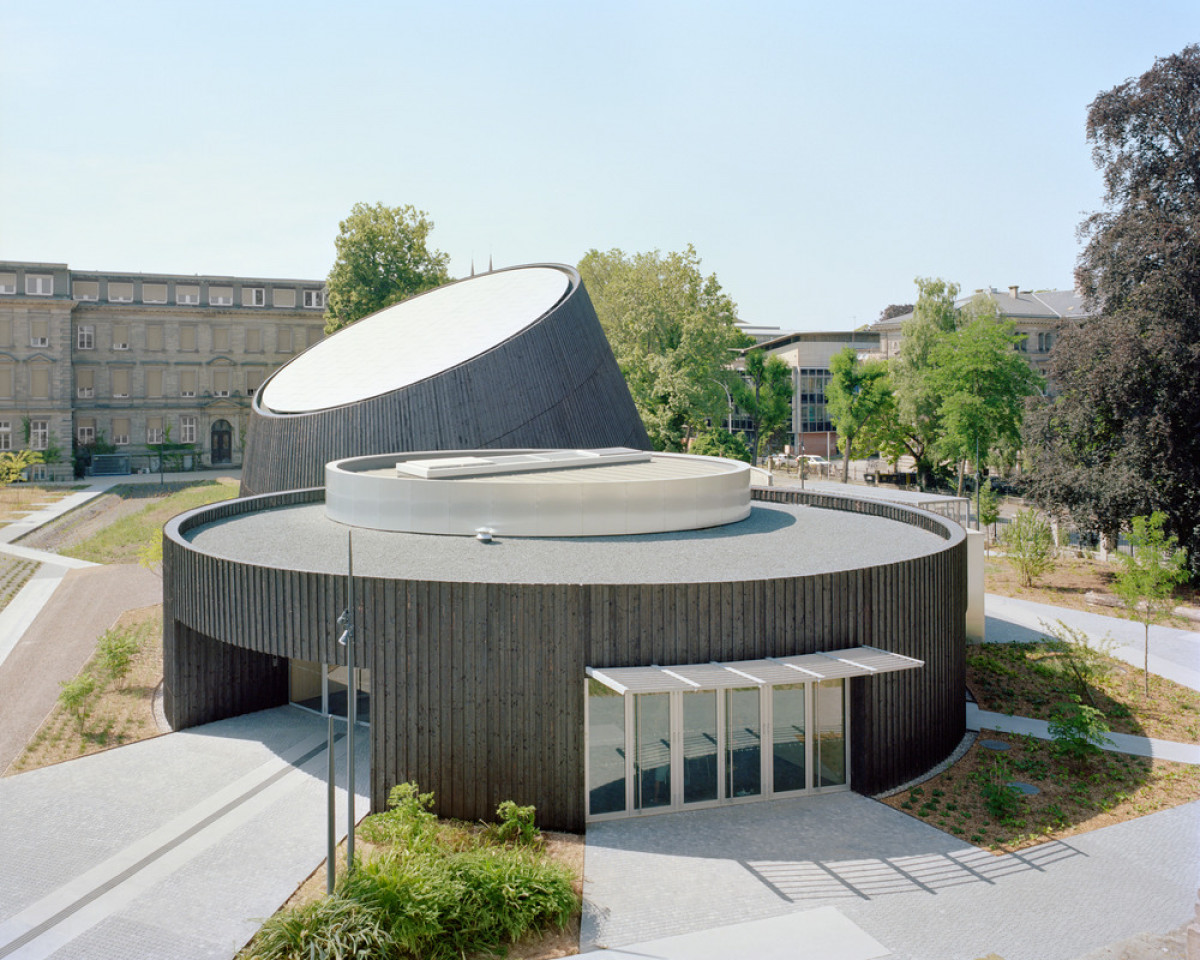

Situated between the imposing Zoology and Geology institutes, the planetarium is made up of two dark volumes that stand out against the garden's abundant greenery: a truncated cone to house the 138-seat projection room and its entrance gallery; a cylindrical volume to accommodate the lobby of the Jardin des sciences and related services. Reaching for the sky, the truncated cone suggests a timeless quest for knowledge of the universe, while the open and radiant lobby points towards the many sites managed by the Jardin des sciences. Dedicated to the dissemination of scientific culture within the university, the Jardin des Sciences thus gains new visibility.

Machine-building

The structure's unusual geometry is reminiscent of the 19th-century machine buildings found on the site, such as the observatory's dome and pavilions des mires, and evokes astronomical measuring instruments such as the astrolabe. For passersby, the cone's metal disc beckons and reacts to the changing colours of the sky; for residents overlooking the site, the planetarium's fifth façade evokes an astronomical instrument set in a garden.

A fruitful duality

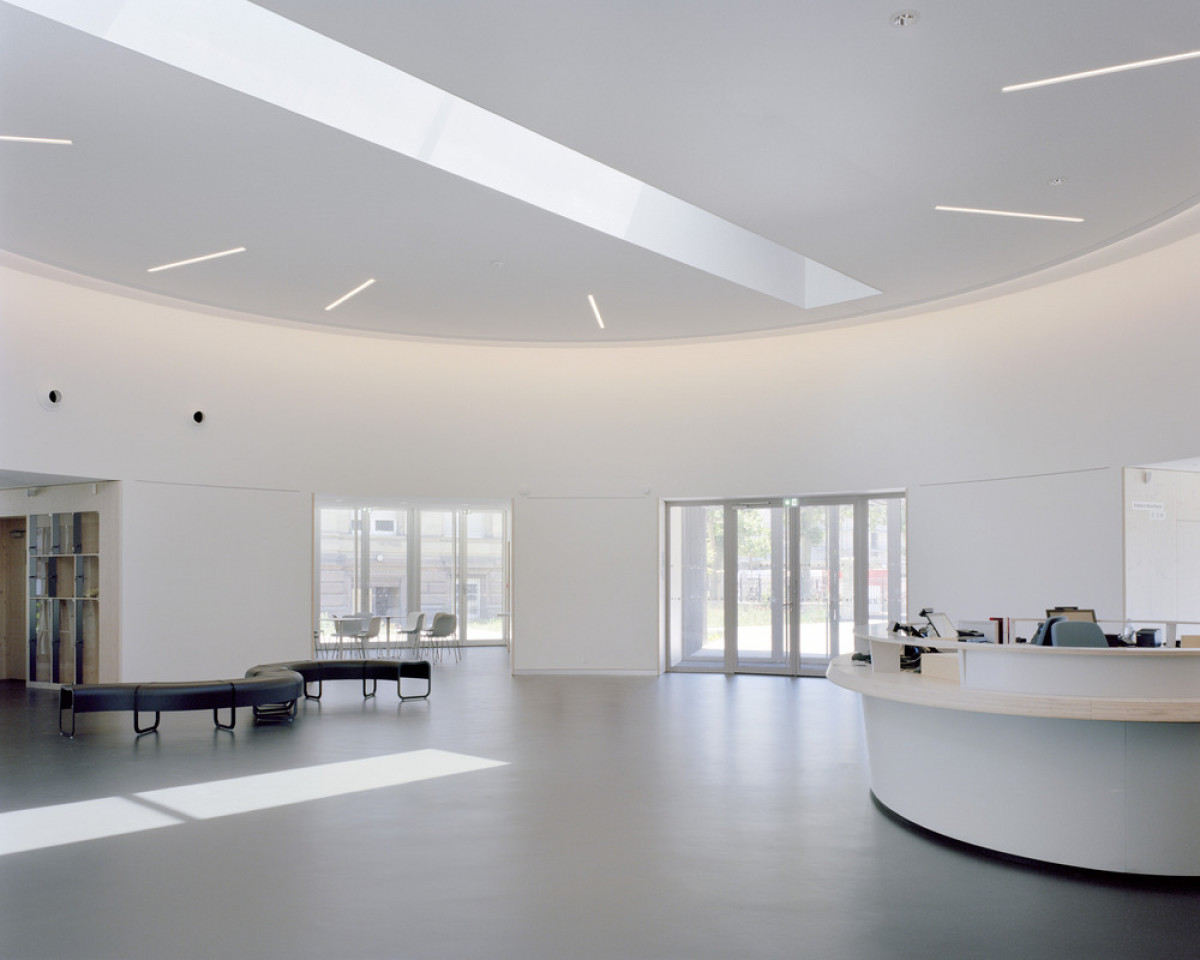

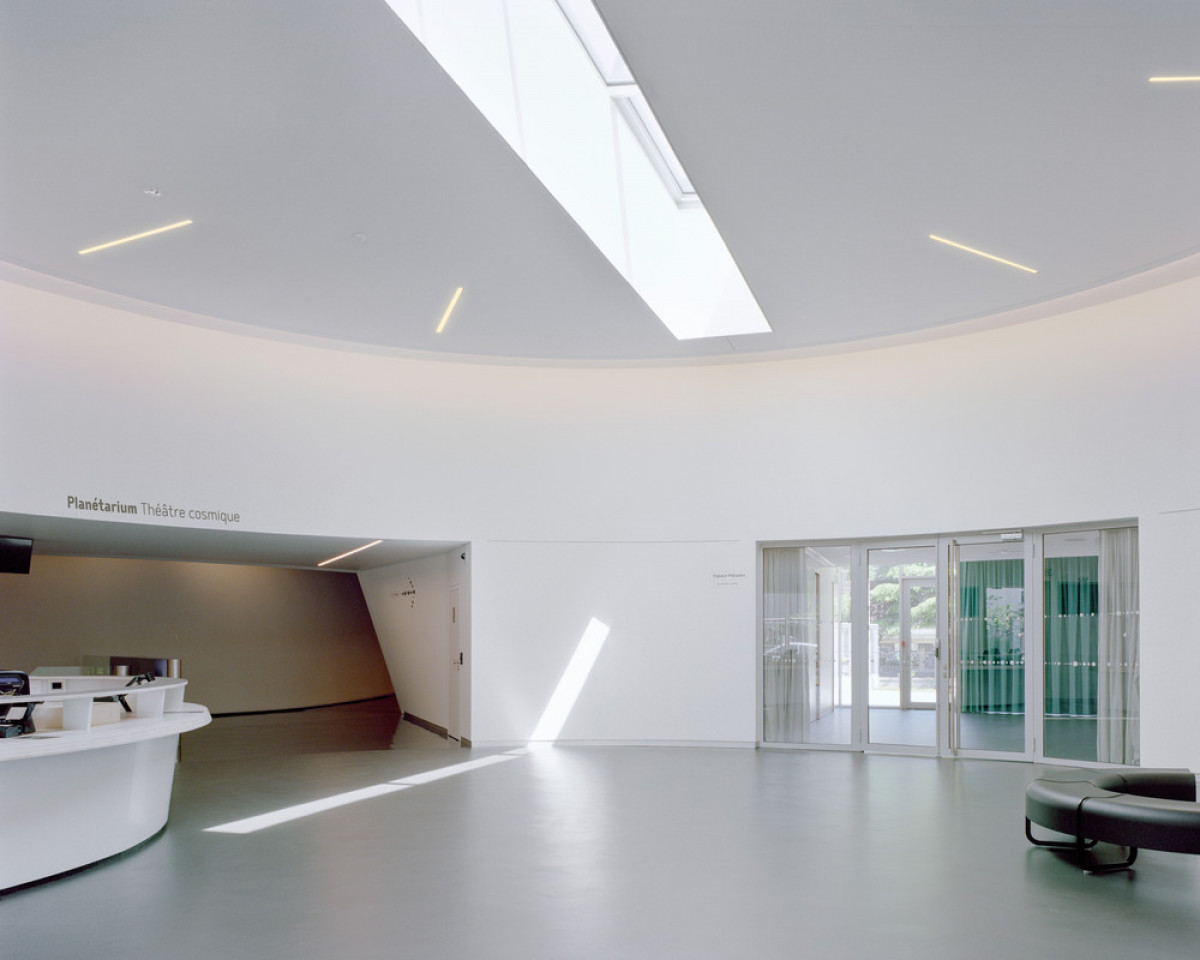

The two elements, the planetarium and the reception area consist of shared components but are put together in opposite ways. Turned inward, the planetarium is empty around the perimeter (the access corridor to the auditorium) and full at its centre (the auditorium), while the reception area, which opens outward to the garden, is empty at its centre (the hall) and is surrounded by a ring of buildings. One is bright and opens onto the sky through a glass roof shaped like a sundial, while the other is plunged into darkness, to create the artificial sky of the cosmic theatre.

Conditioning and immersion

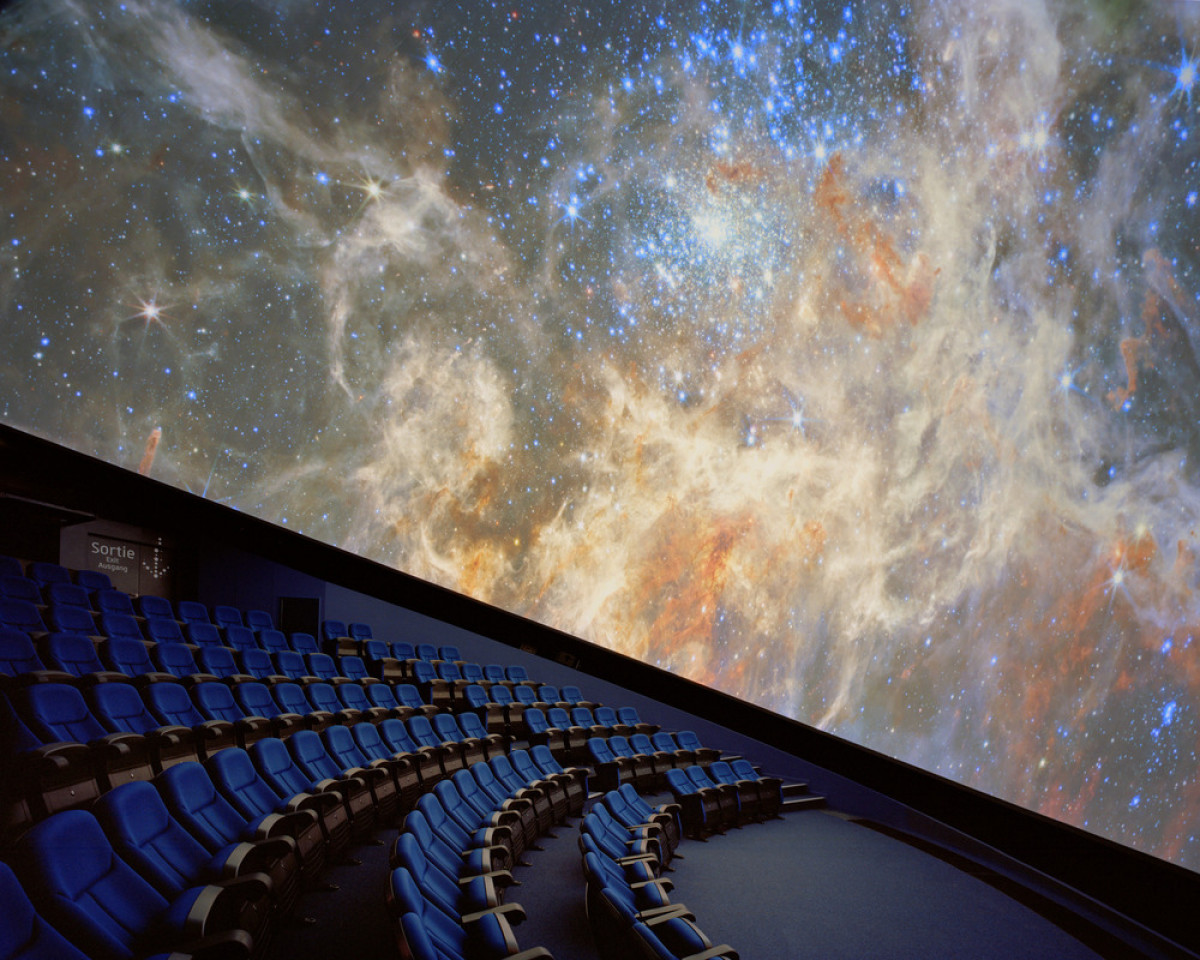

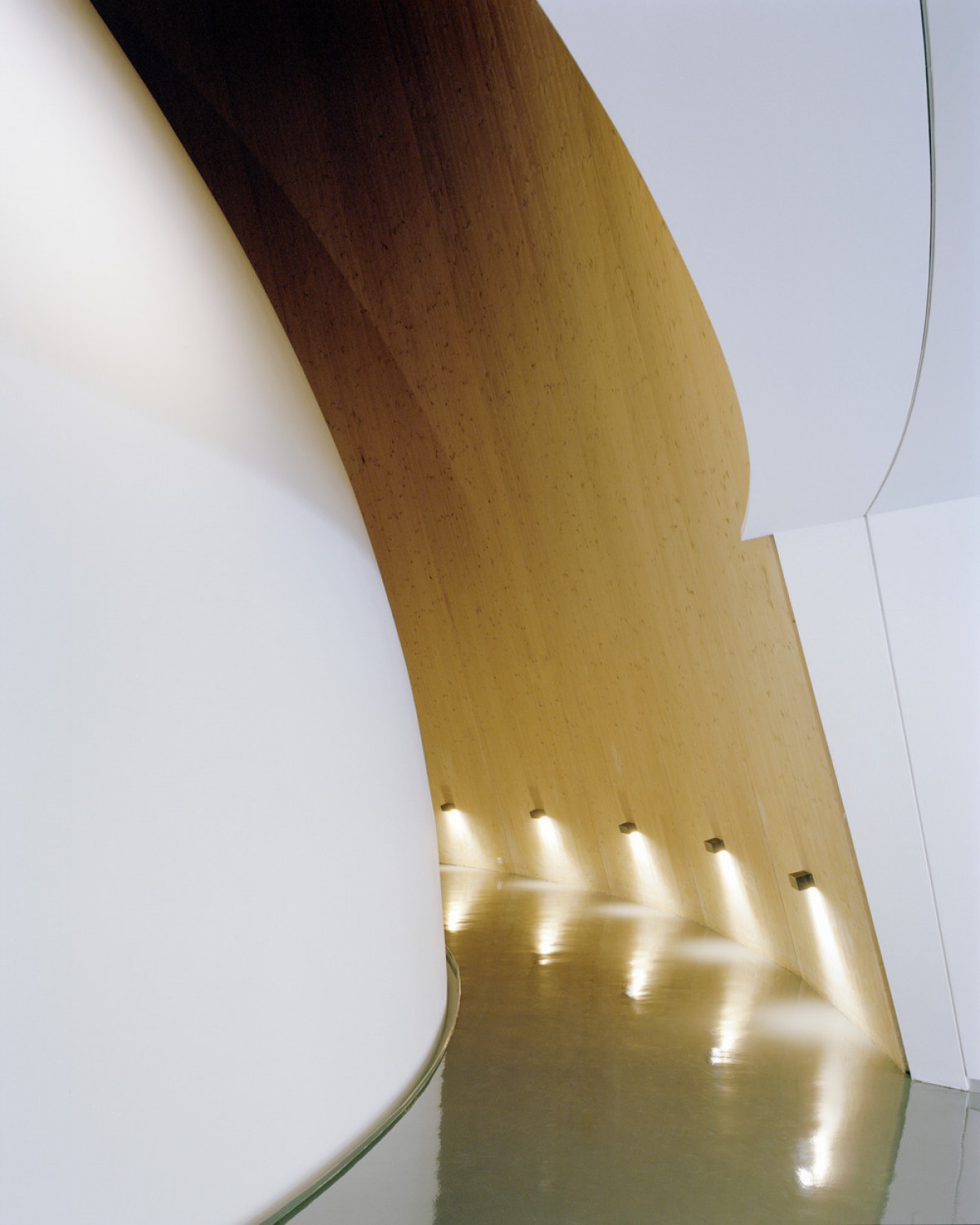

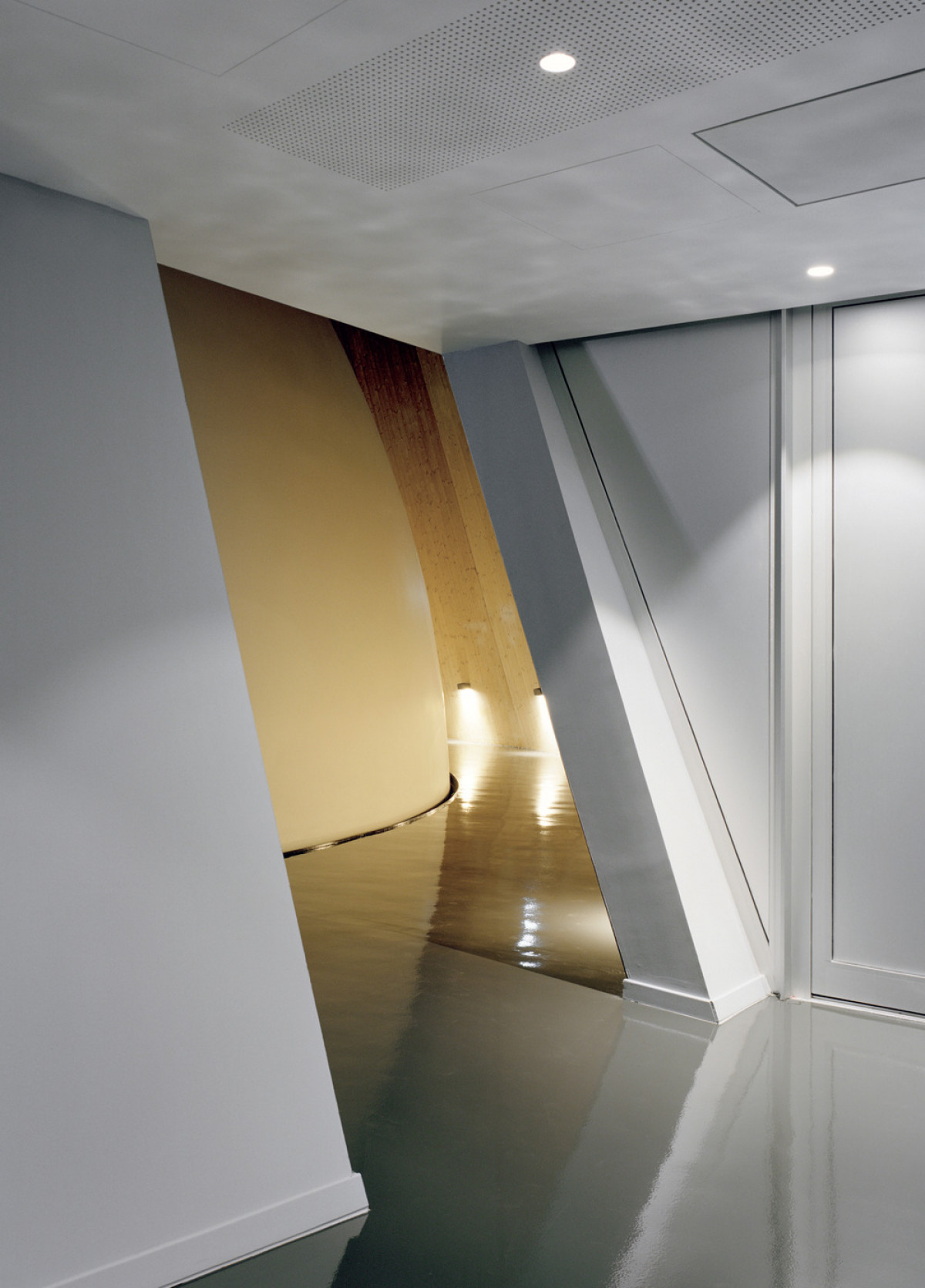

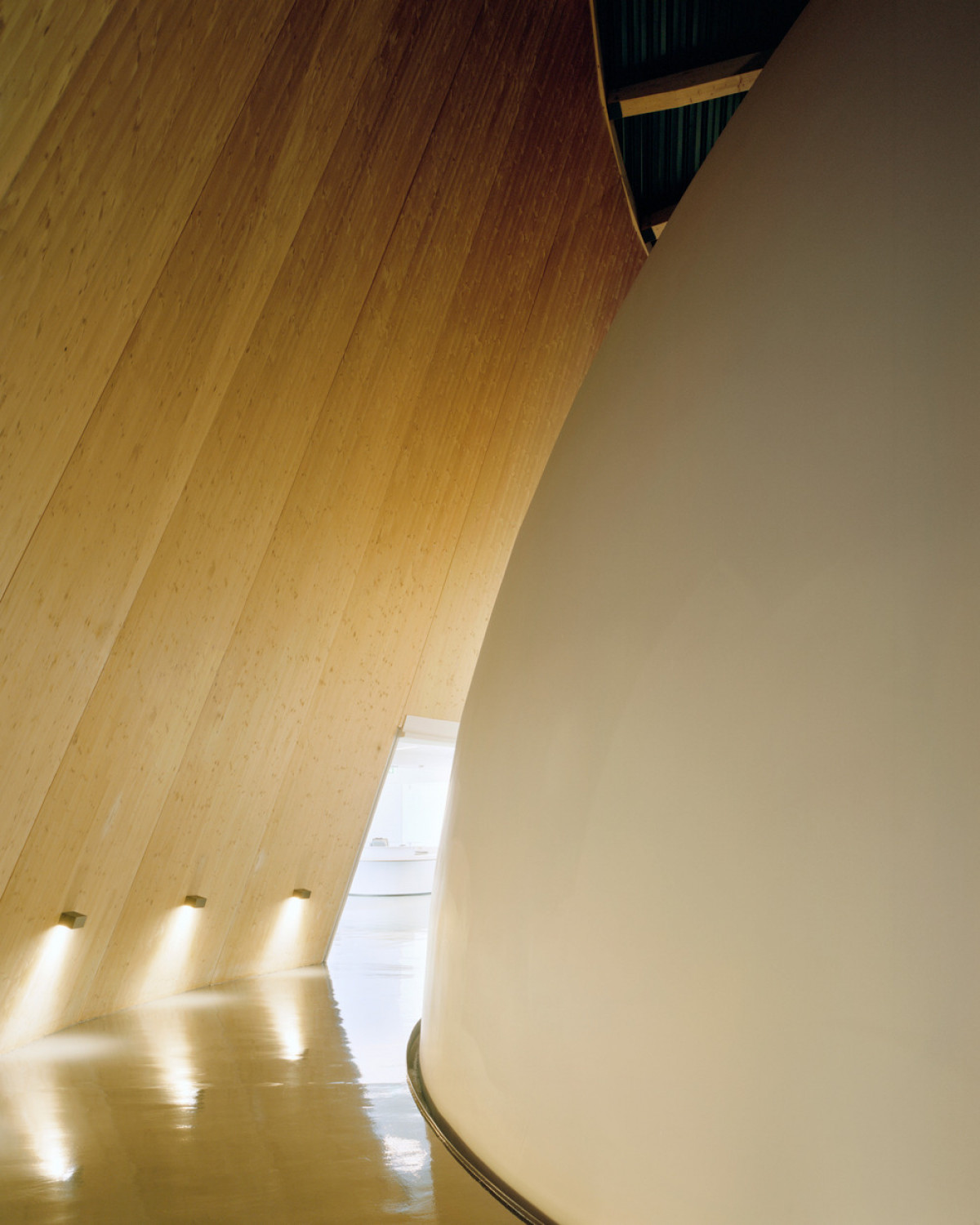

Tucked between the cone’s hemisphere and its inner face, the slightly slanted circular gallery offers a spatial experience in which one goes from the brightness of the hall to the penumbra essential to the cosmic theatre, where artificial skies are made. The CLT wood panels of the exposed structure rise to a height of 17 metres, forming giant facets; a vastness that prepares one for a journey into space. The gently sloping ramp leads the spectator to the top of the auditorium, beneath the projection dome whose suspension and inclination heighten the immersive effect. The lighting is minimal, illuminating a night blue environment with a high absorption coefficient. The 6 digital projectors laid out around the perimeter are accessible via the technical gallery that surrounds the room.

Russian dolls

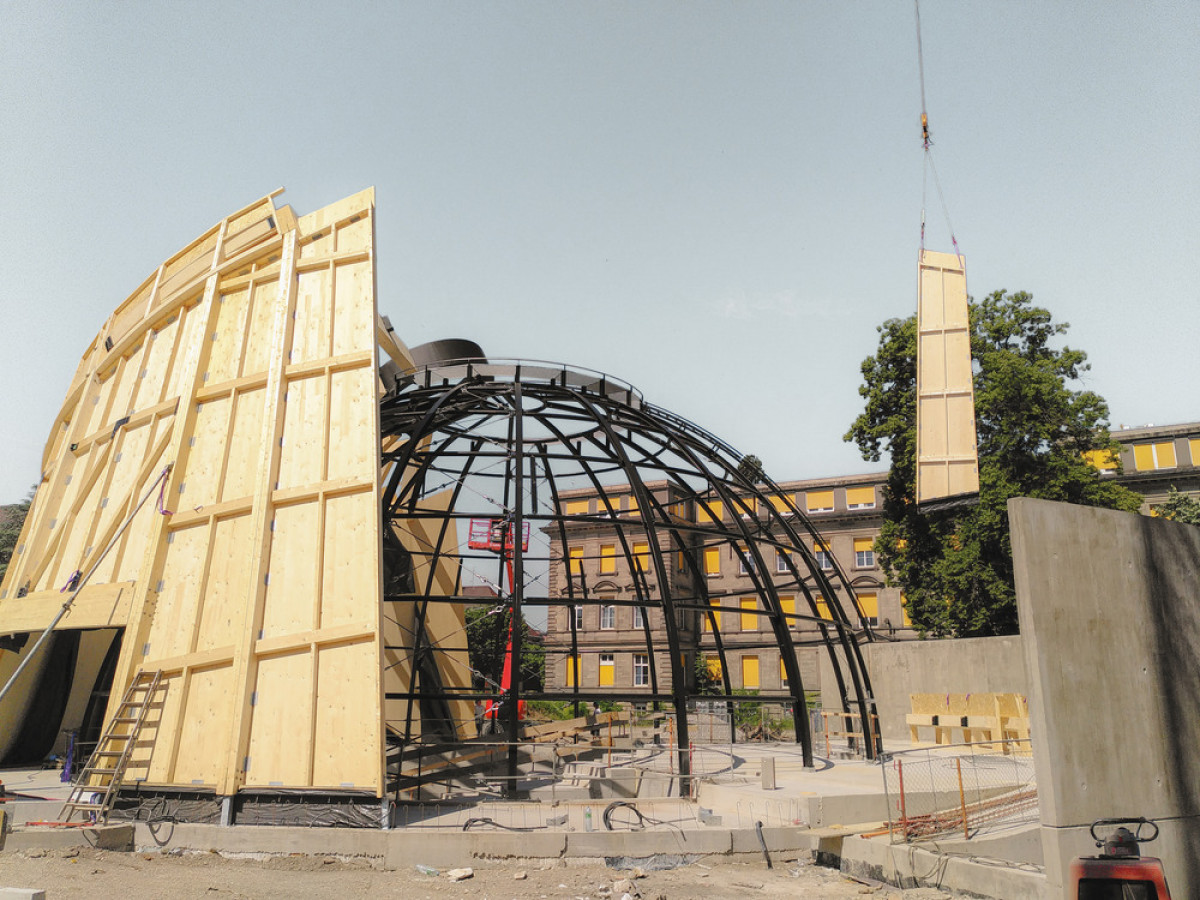

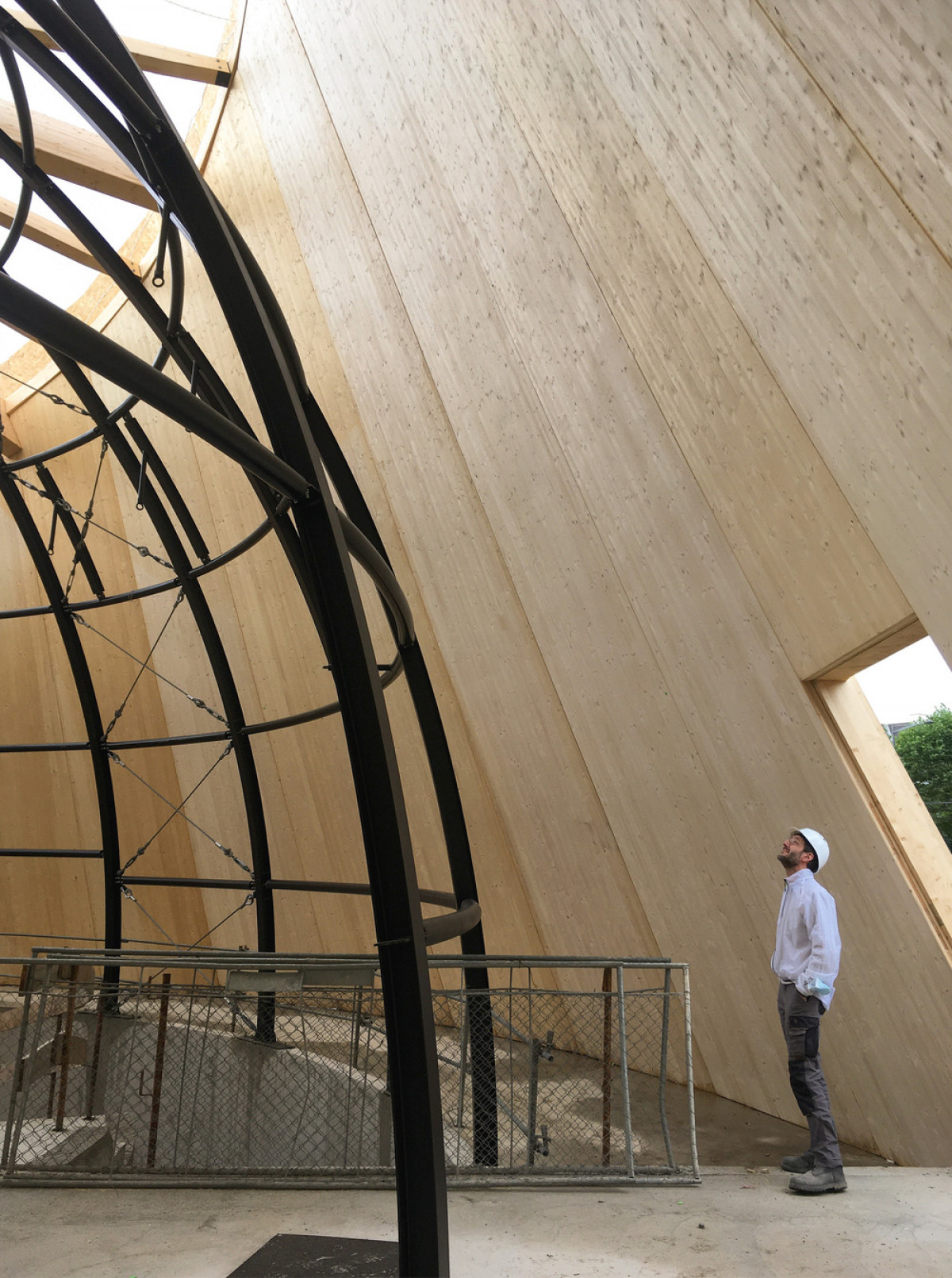

The nestled volumes (cone, dome, screen) and the precision required for the suspension of the projection screen led to special constructive solutions. It involved an atypical assembly logic during the building phase, such as the mounting of the planetarium's metal dome before that of the cone's covered enclosure

Burnt wood, light-coloured wood, compactness: an environmental and aesthetic concern

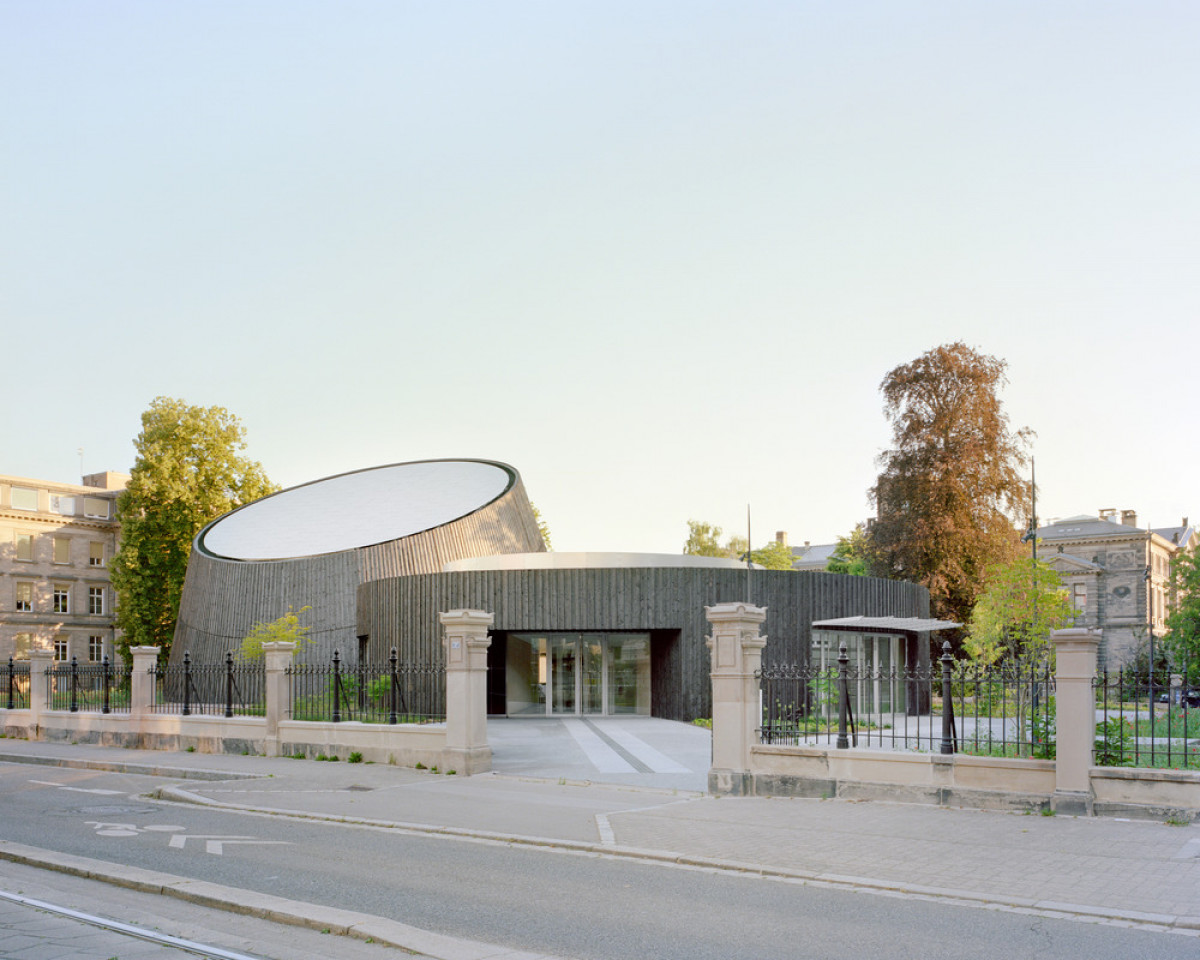

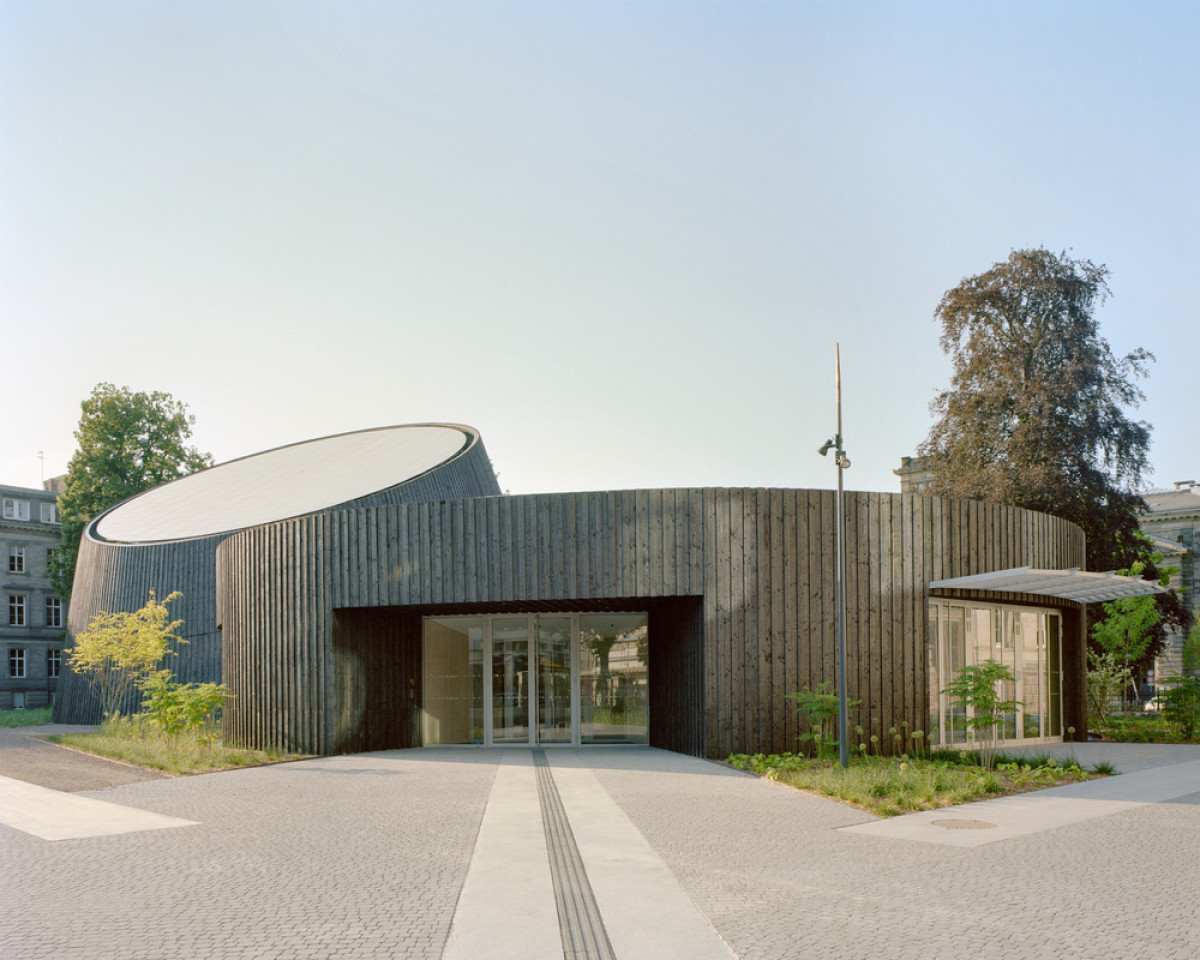

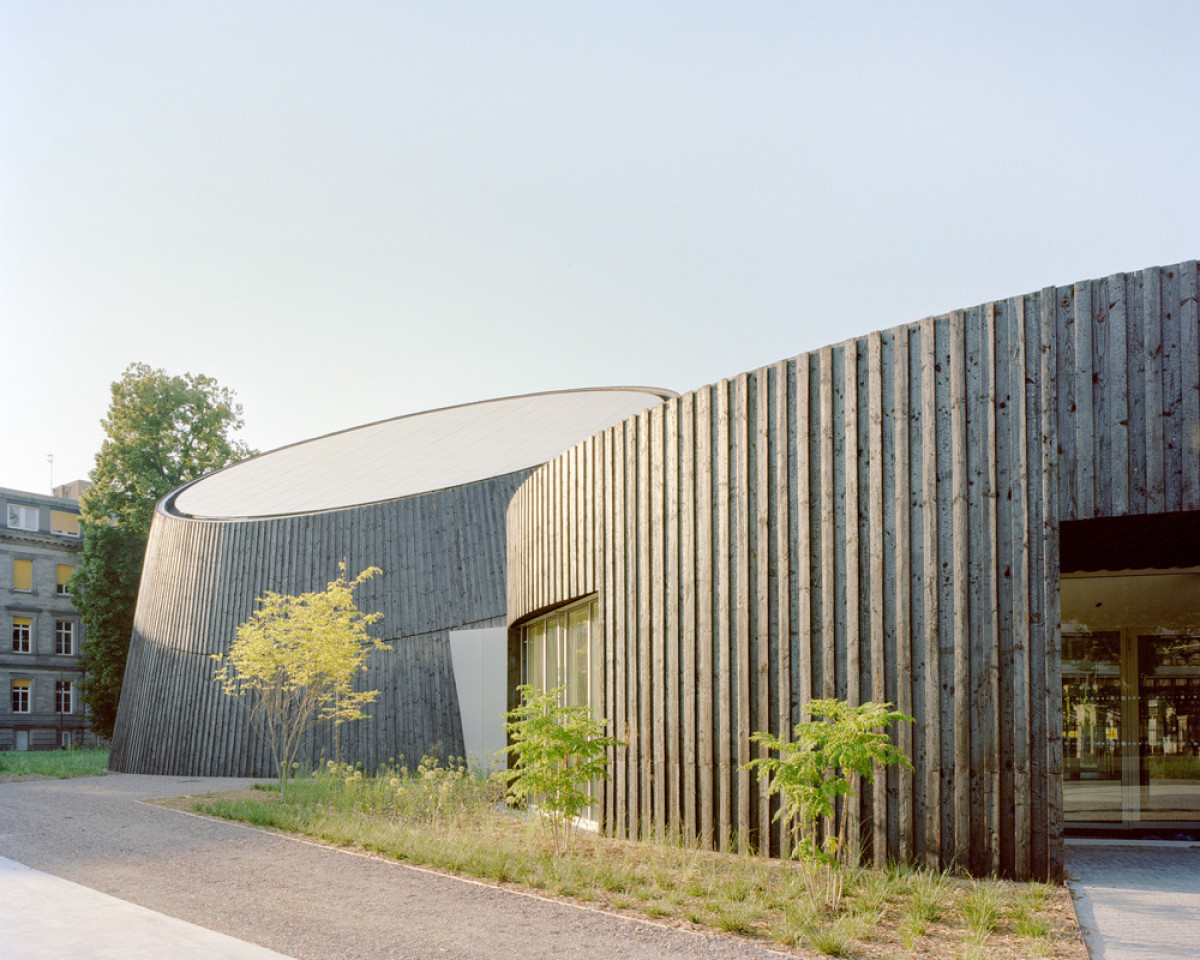

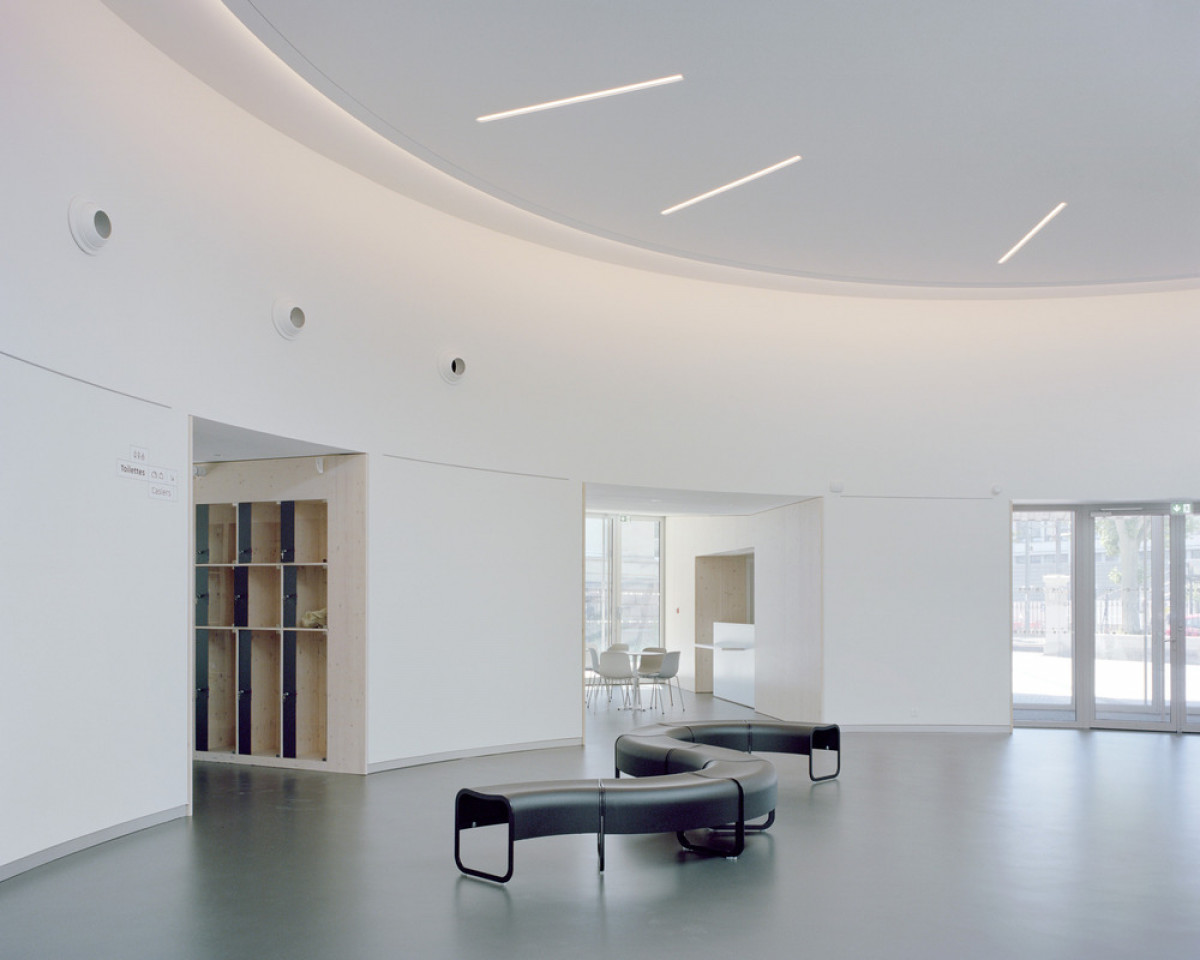

Burnt wood and aluminium on the outside, light-coloured wood and plaster on the inside: the materials used for the building are few, simple, and contrasting. On the outside, the building's telluric or volcanic appearance is reinforced by a charred film of Douglas fir slats, whose deep brown-black texture takes on silvery reflections in low-angled sunlight. Inside, light-coloured wood panels take over, contributing to the hall's bright atmosphere. The compactness of the building, and the positioning of the openings on the hall side, greatly limit the building's heat loss, thus ensuring optimal environmental performance.



The Jardin des Sciences, a public garden

Running between the two streets, the garden is designed as a succession of plant environments, from shady undergrowth in the north to tree-dotted meadows in the south. In addition to the beautiful existing trees, high-growing trees and flowering shrubs will create a woodland atmosphere with strong autumnal colours, mirroring the diversity of the nearby Botanical Gardens. To the south, a long plant-covered ditch regulates rainwater and broadens the ecosystems' range. To accent the site, 8 circular gardens (the constellations) feature a variety of plants and mineral mulches, which echo the institutes of Zoology and Geology, as well as the Botanical Garden, while also alluding to the solar system's 8 planets.

Technical sheet

Project name

Planétarium du Jardin des sciences de l’Université de Strasbourg

Location

27 Boulevard de la Victoire, 67000 Strasbourg, France

Client

UNISTRA - Université de Strasbourg

Program

15 m diameter projection room with services, Jardin des sciences reception area, cafeteria, educational room and store.

Competition

Invited competition, winning project (2016)

Opening

Summer 2023

Floor area

Building 1000 m2, garden 5000 m2

138-seat screening room

Construction cost

5000 000 € excl. tax (including garden)

Project team

Architecture

frenak+jullien lead architects

Cardin Julien, associate architects

m+ mathieu holdrinet, project architect

Landscape architecture

FORR

Structural engineering

MaP3

Mechanical-electrical engineering, energy efficiency and sustainable development

Espace Temps

Civil engineering

OTE

Scenography

dUCKS sceno

Acoustics

Lamoureux

Signage

Téra-création

Economy

Echoes

Construction

Wood framing

Charpente Houot

Structural works

Bringholf Constructions

Dome metal structure and plaster

ADLER

SIRC

Insulated burnt wood cladding

Martin Fils

Metal cladding

Schoenenberger
