In our series of post lockdown hideouts, and how could Raas Chhatrasagar be not part of the list. RAAS Chhatrasagar is a 20-key hospitality property located near the town of Nimaj, in Rajasthan’s Pali district. Perched atop a nearly 150-year-old check dam that forms a perennial rainwater lake, it reinvents an earlier property that used to operate out of seasonal tents, thereby providing guests with a year-round opportunity to observe the region’s abundant biodiversity amidst 800 acres of pristine forestland.

Chhatrasagar is an artificial lake that formed in the late nineteenth century when a local Rajput noble, Thakur Chhatra Singh created an embankment across a tributary to the rain-fed Luni with the intent to provide farmers continuous water supply for irrigation. Replenished by monsoon showers, the reservoir soon transformed the nearby scrubland into a lush arable tract.

Also Read | 10 Useful Vastu tips for your home to attract positive energy to every corner of it

Over the years, the property mushroomed into a vast stretch of forest, attracting wildlife and native avifauna, including migratory species. Most farming activities were suspended nearly a couple of decades ago when the owners decided to rewild the landscape, reserving a small parcel of land for organic farming.

The original tourist camp at Chhatrasagar, run by the noble’s grandsons, comprised an eleven-key tented accommodation—operational from October to March—and dismantled during the harsh summer months, only to be re-assembled again at the onset of autumn. The canvas tents were charming in their simplicity but offered dismal insulation and lacked visual and acoustic privacy. This combination made for a tough business model to sustain.

Also Read | 7 Subtle ways to add an earthy vibe to your home

A local, highly successful boutique hotel company with a history of turning around difficult projects, RAAS was brought on board to chalk out a comprehensive blueprint that would improve and enhance the guest experience, while retaining the essence of what the guests loved about the property.

The design brief called for developing a perennial property resilient to the harsh summers and cold winters of the region. In addition, there was a need to increase the existing capacity to sixteen tented units and augment the public spaces with a richer amenity mix. Of paramount concern was the site's sensitive ecological context, which made it imperative that all additions be erected on minimal environmental footprint.

Also Read | 6 Reasons why businesses are switching to smart lighting

Studio Lotus team comprising Ambrish Arora, Ayesha Hussain, Deepesh Harbola, Pranvi Jain stepped in to chisel this exquisite property out from the canvas.

“Retaining and building on the experience of being in the erstwhile temporary tents while keeping operating energy requirements minimal was a key goal. The site presented us with an opportunity to create an architectural form which emerges from the morphology of the Chhatrasagar dam without conforming to the cliché of the Rajasthani tents,” says Ambrish Arora, Principal, Studio Lotus.

Also Read | 7 Feng Shui tips to attract positive energy in your living room

The groundwork

The design team sought to reveal the site in layers, weaving in the experience of discovery with an element of surprise. This was achieved by working in harmony with the context and tying numerous touchpoints to establish meaningful and immersive connections.

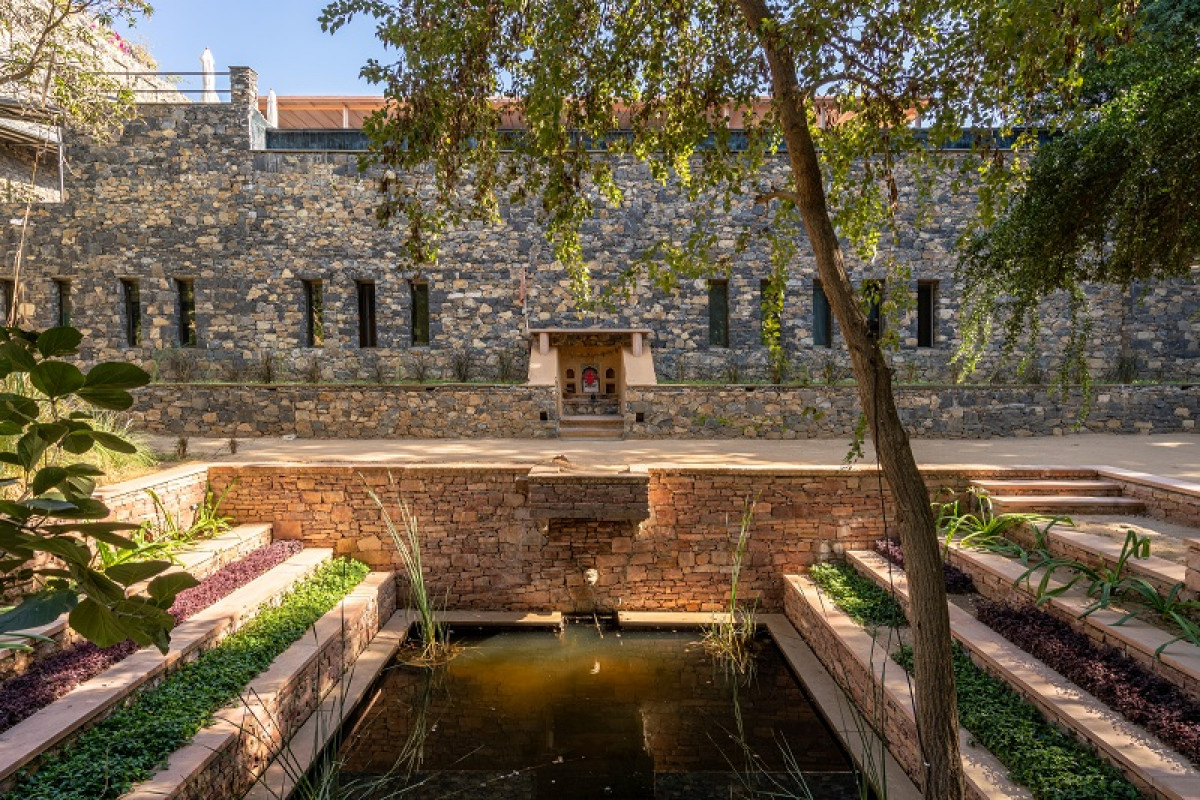

Where vehicles would earlier be permitted access right up to the base of the dam, the current facility has guests arrive at a drop-off area further away in a dense grove of trees which screens all views. As they walk through a shaded path flanked by orchards and thick underbrush, a stone wall and planted slopes of the dam reveal themselves. Oblivious to what’s in store next, they climb a series of stepped stone plinths before emerging in a courtyard that frames a view of the Chhatrasagar Lake with sweeping vistas of the surrounding wooded landscape. Thus, this small courtyard gets established as the heart of the property, unifying the project’s public and private spaces.

Also Read | Six types of floor styles to complement your interiors in the perfect way

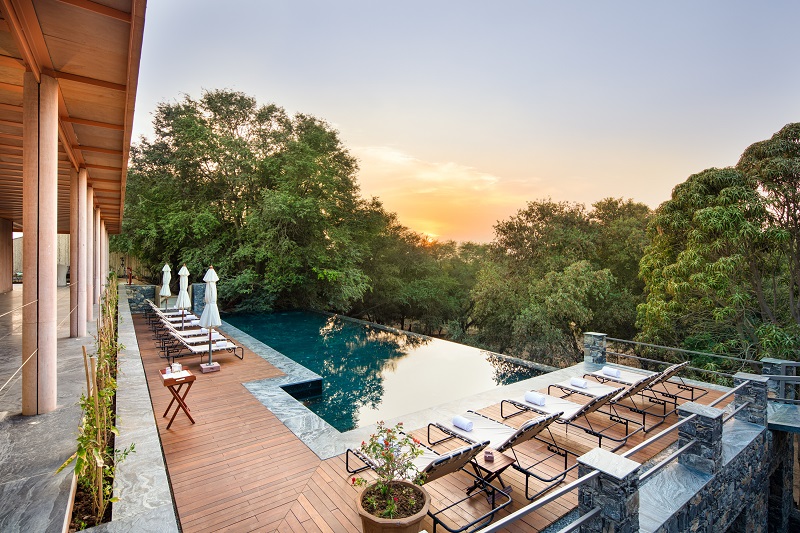

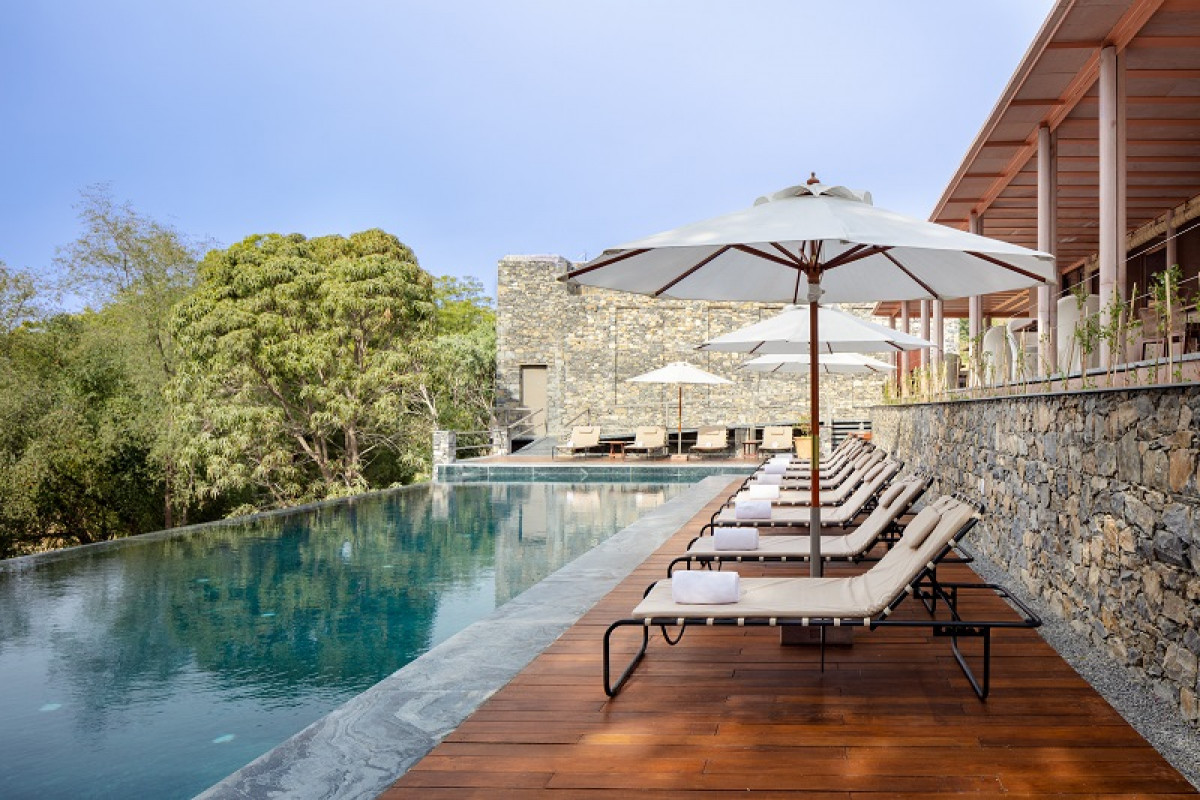

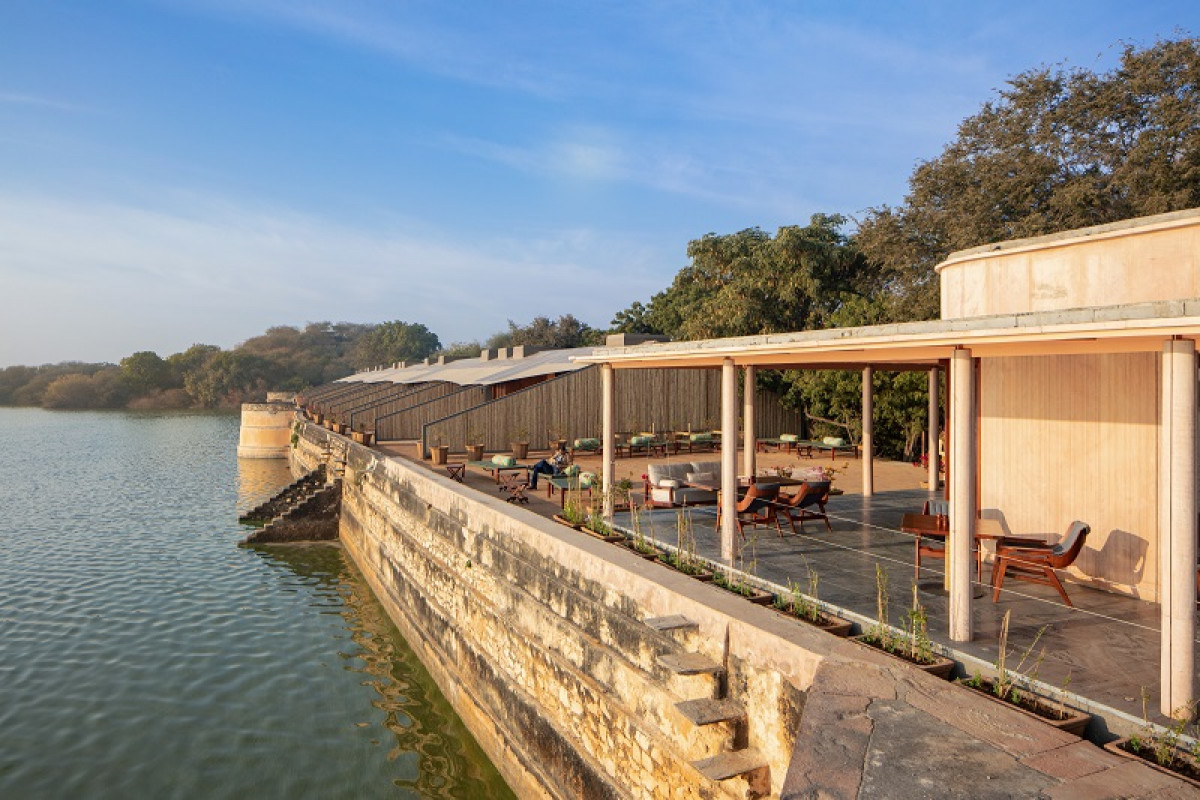

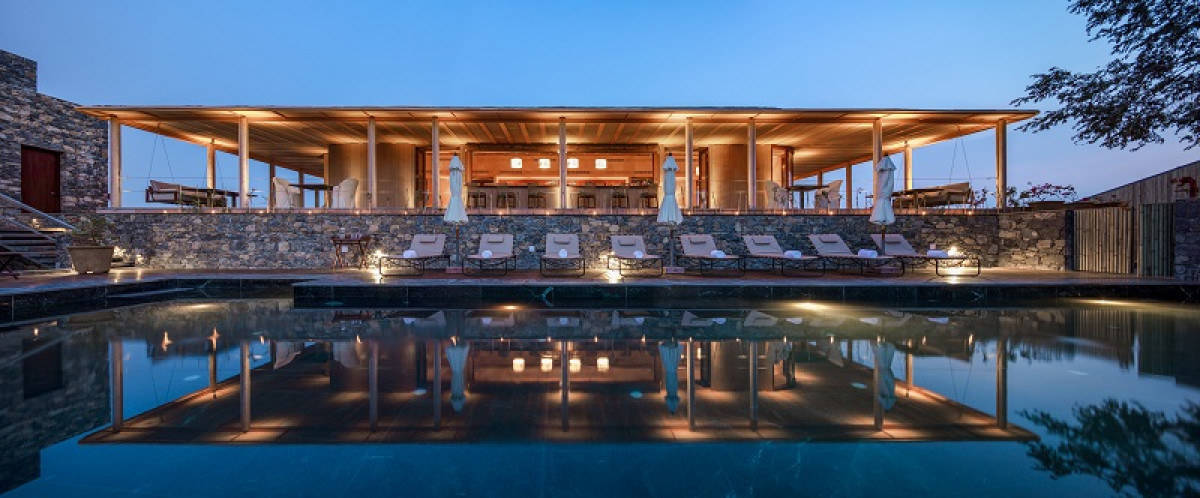

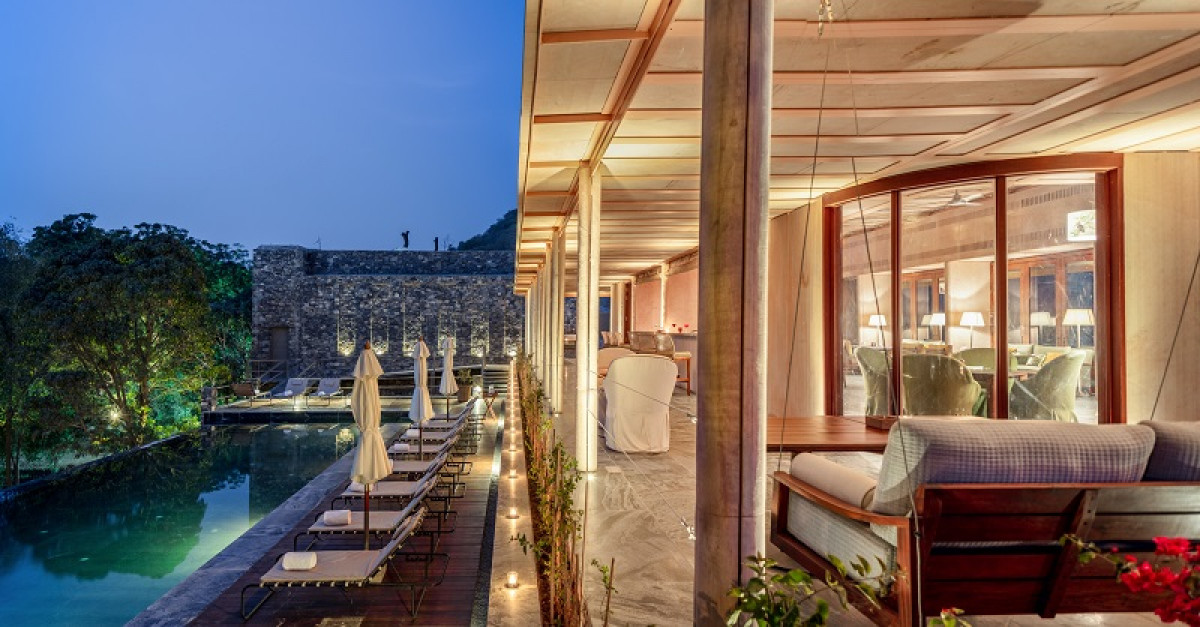

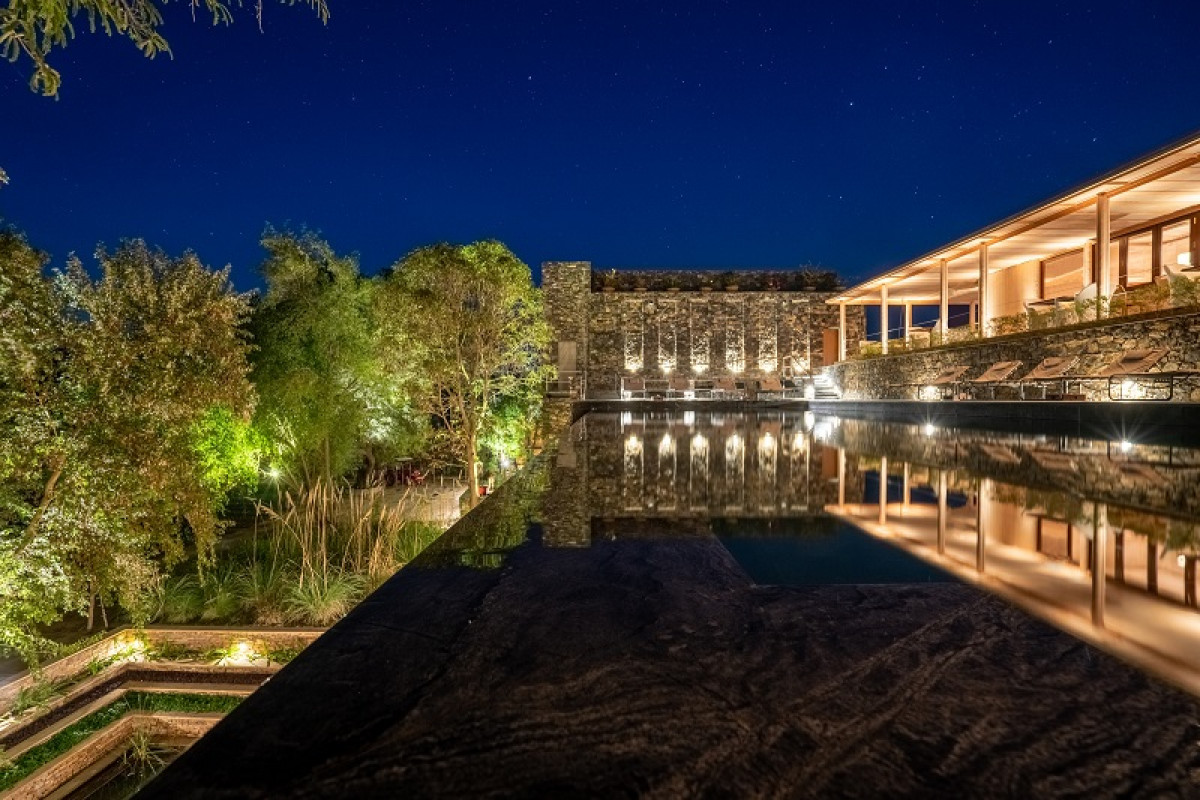

The functional programme comprises public and private spaces laid out in a linear configuration along the length of the dam. To the north of the central court is the reception-cum-bar and restaurant, abutted by an all-season infinity pool to the west; screened by a small garden is the owners’ private residence along its northern edge. The single-storey structure is placed strategically with adjoining back-of-house functions to receive a continuous supply of fresh, farm-to-table produce. Bordering the southern periphery of the court is the camp consisting of stilted tented pods that build on the legacy of the erstwhile tents.

Maintaining the legacy

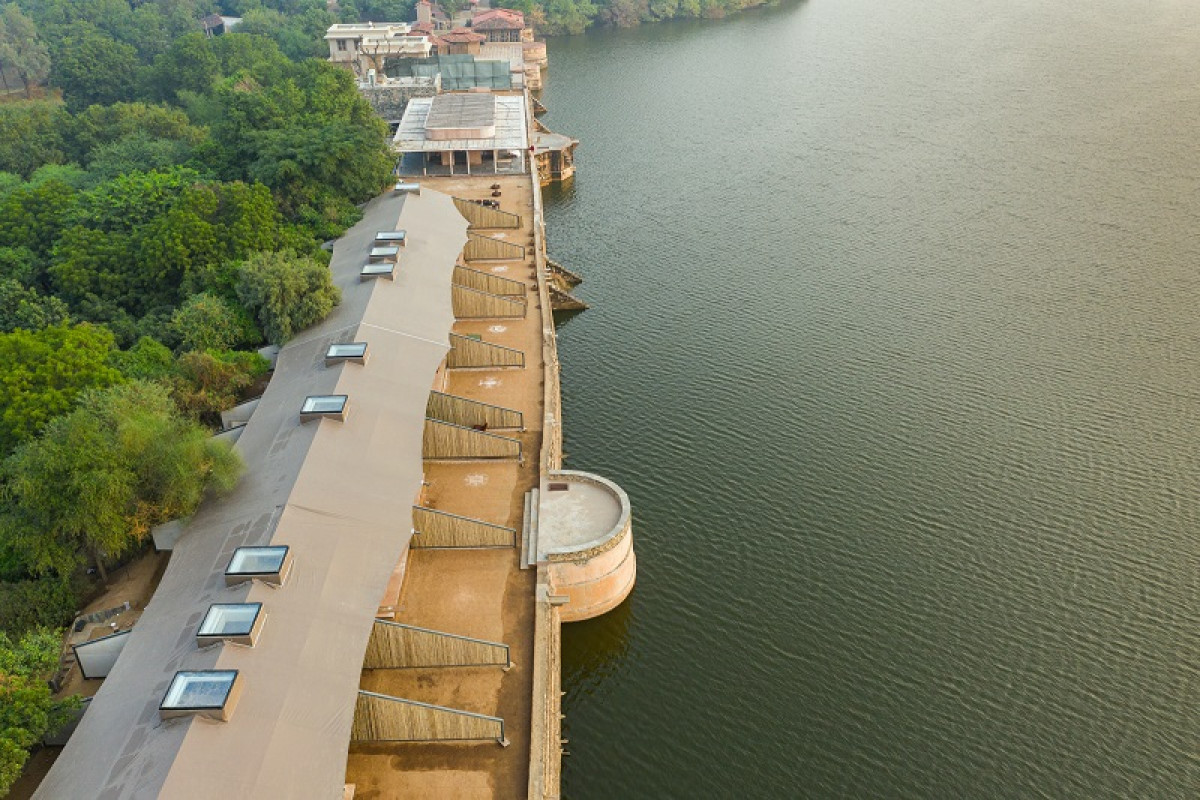

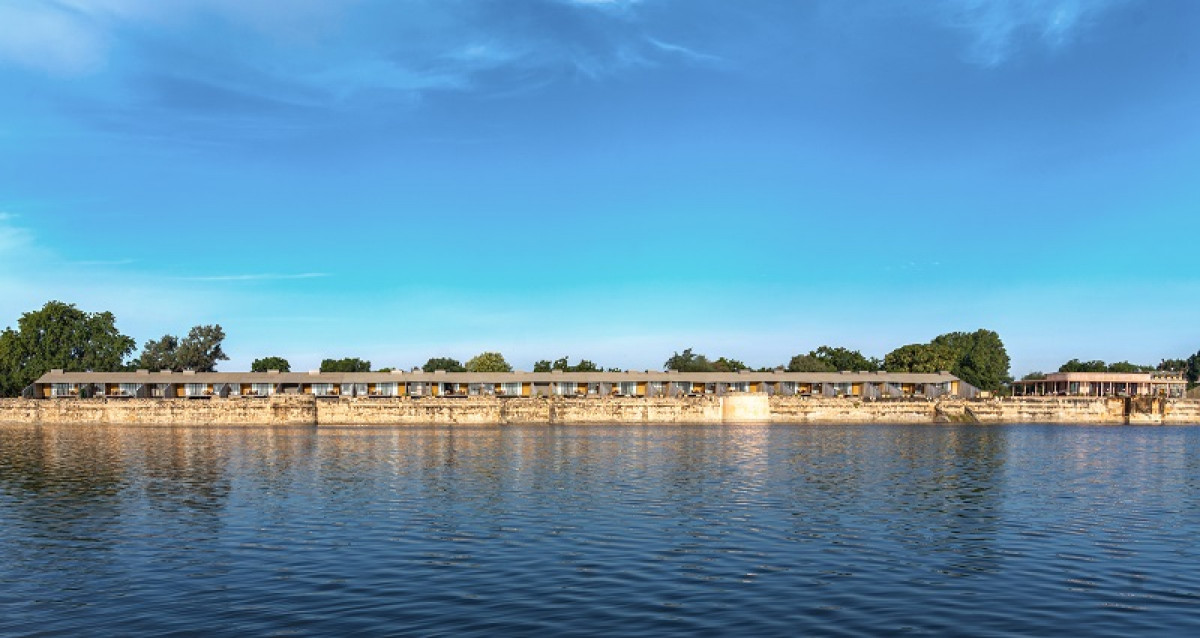

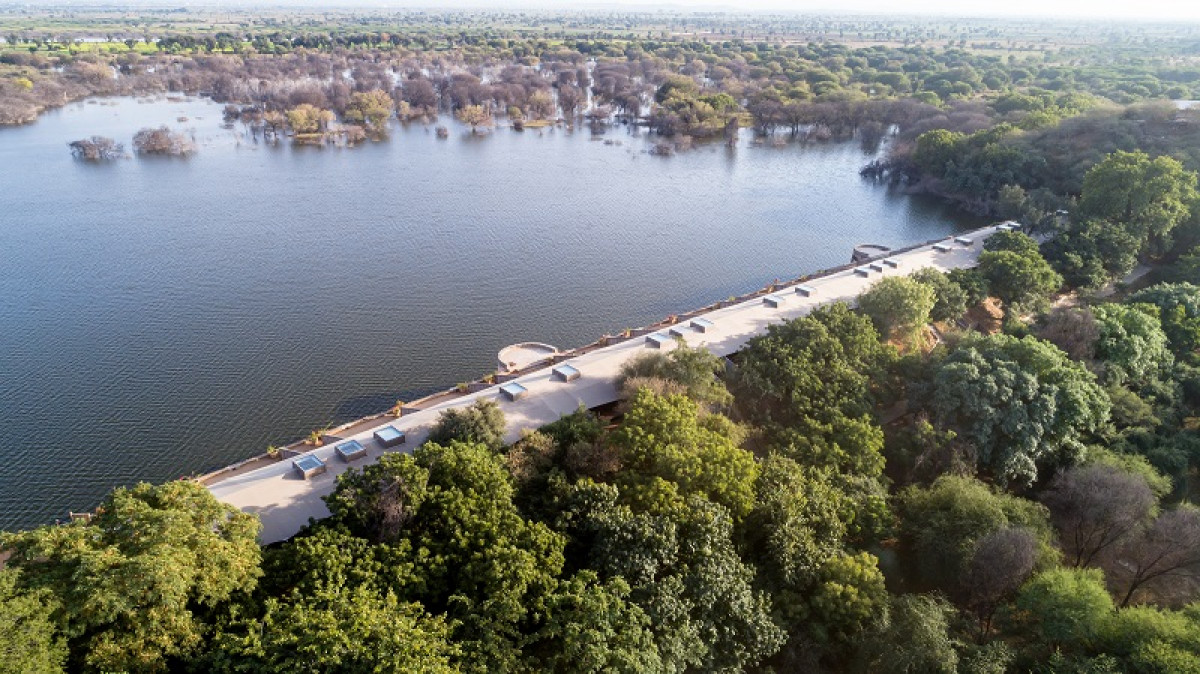

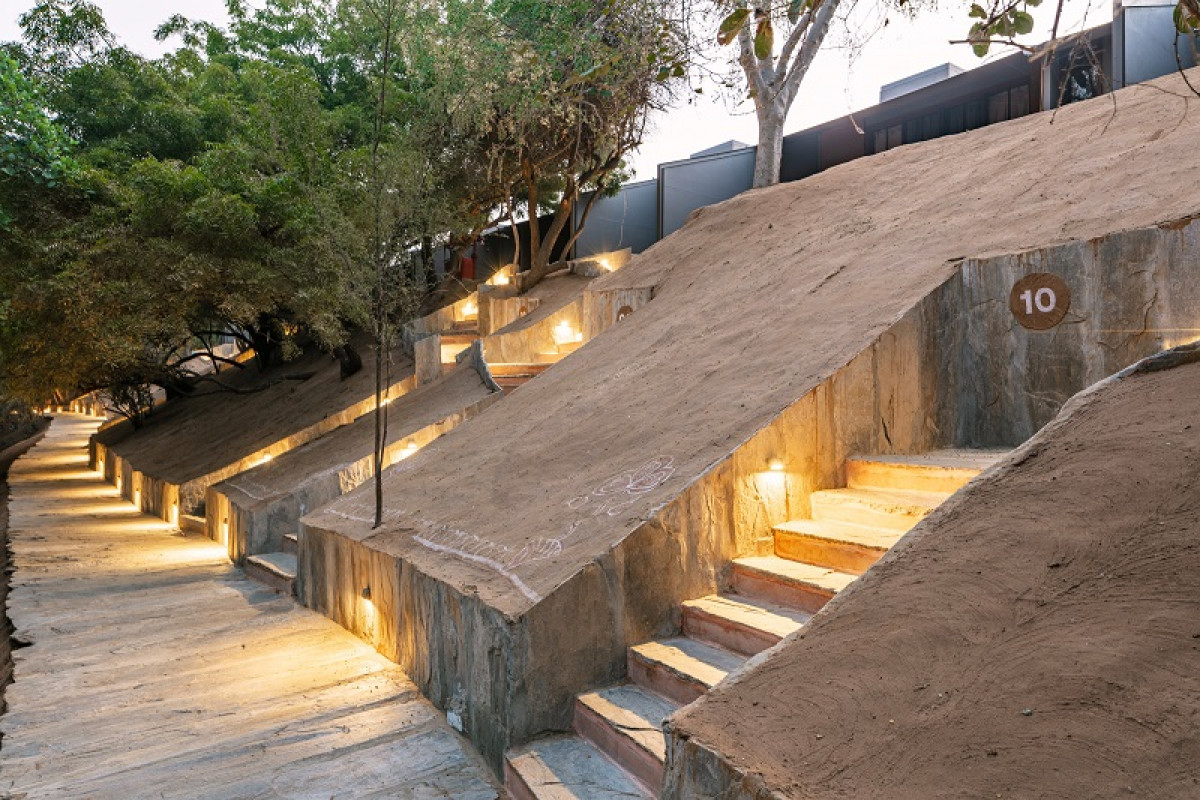

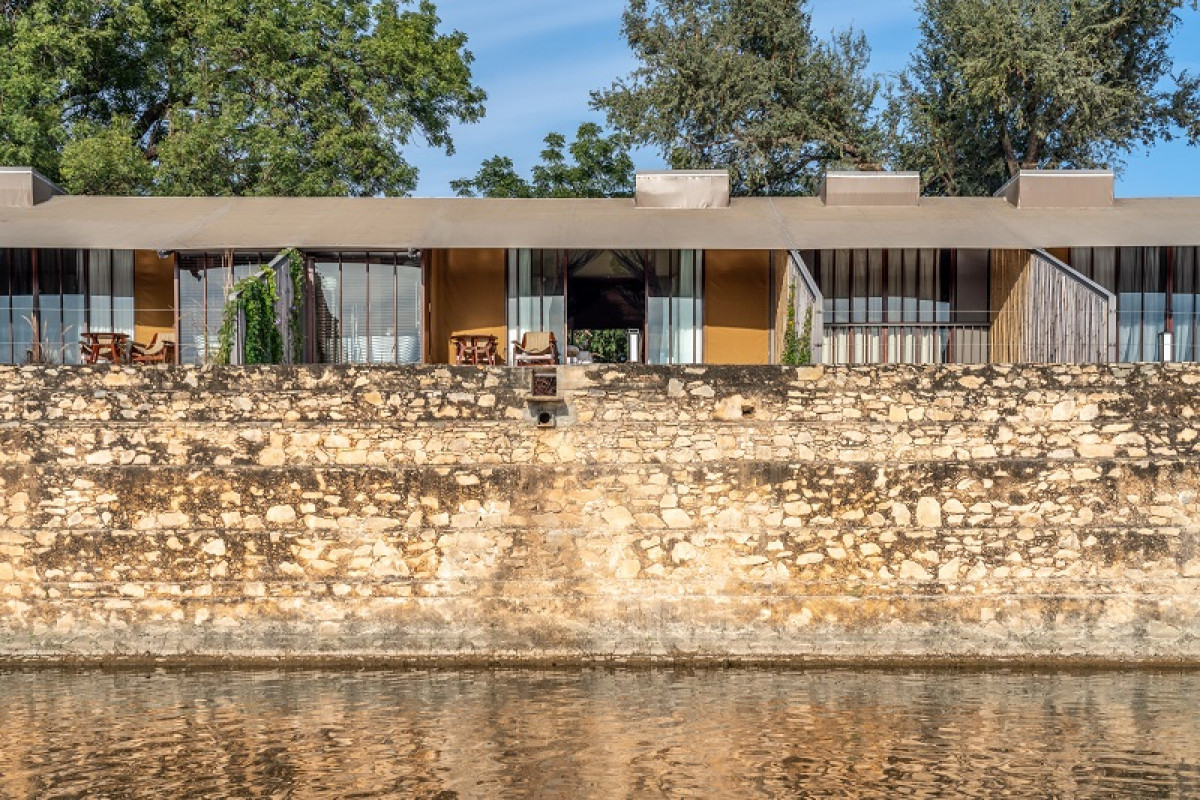

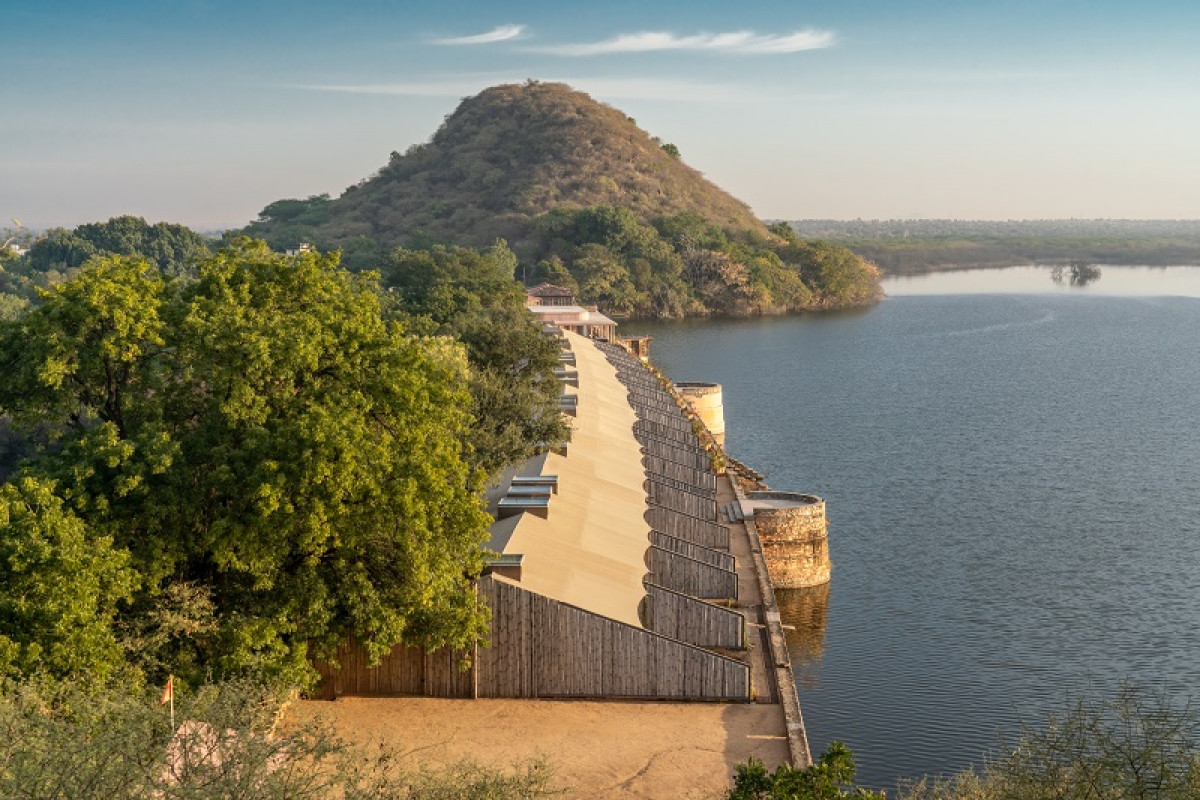

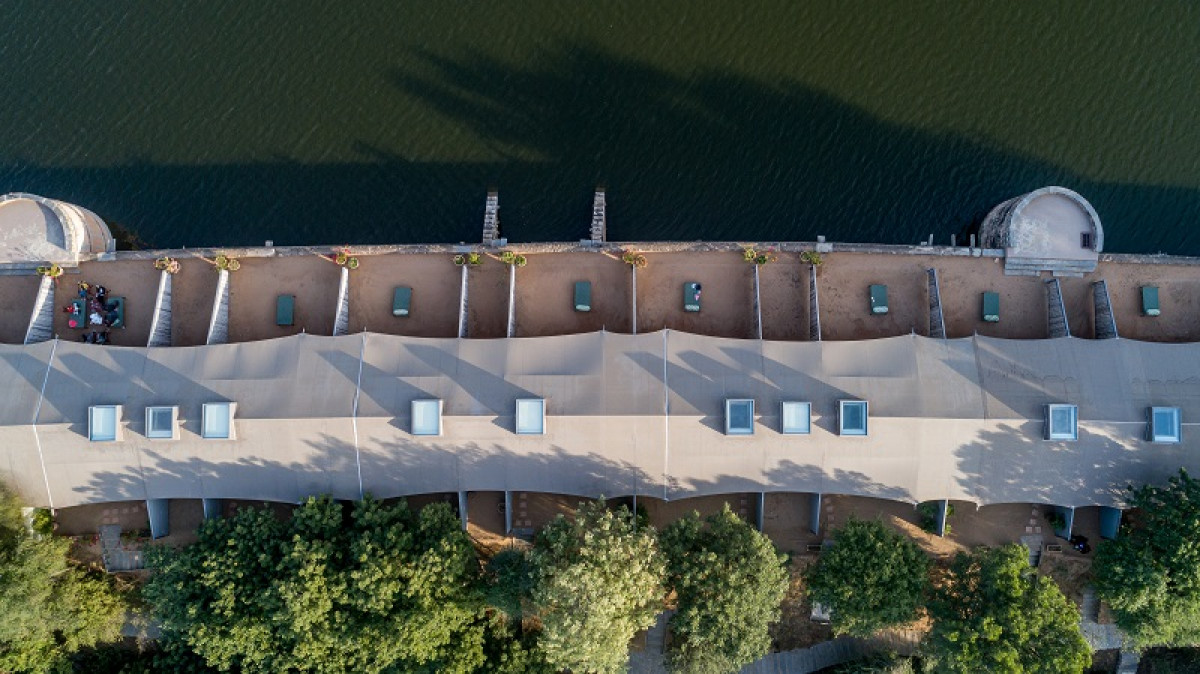

The site plan lays out the sixteen 'pods' as an arrangement of conjoined suites raised on stilts to preserve the embankment's structural integrity and enables MEP services to run elevated off the dam, allowing rainwater to drain freely into the lake. Guests access the property via a landscaped walkway along the nearby forest belt, climbing a series of stone steps through tree-lined slopes and gardens to a deck leading into the units.

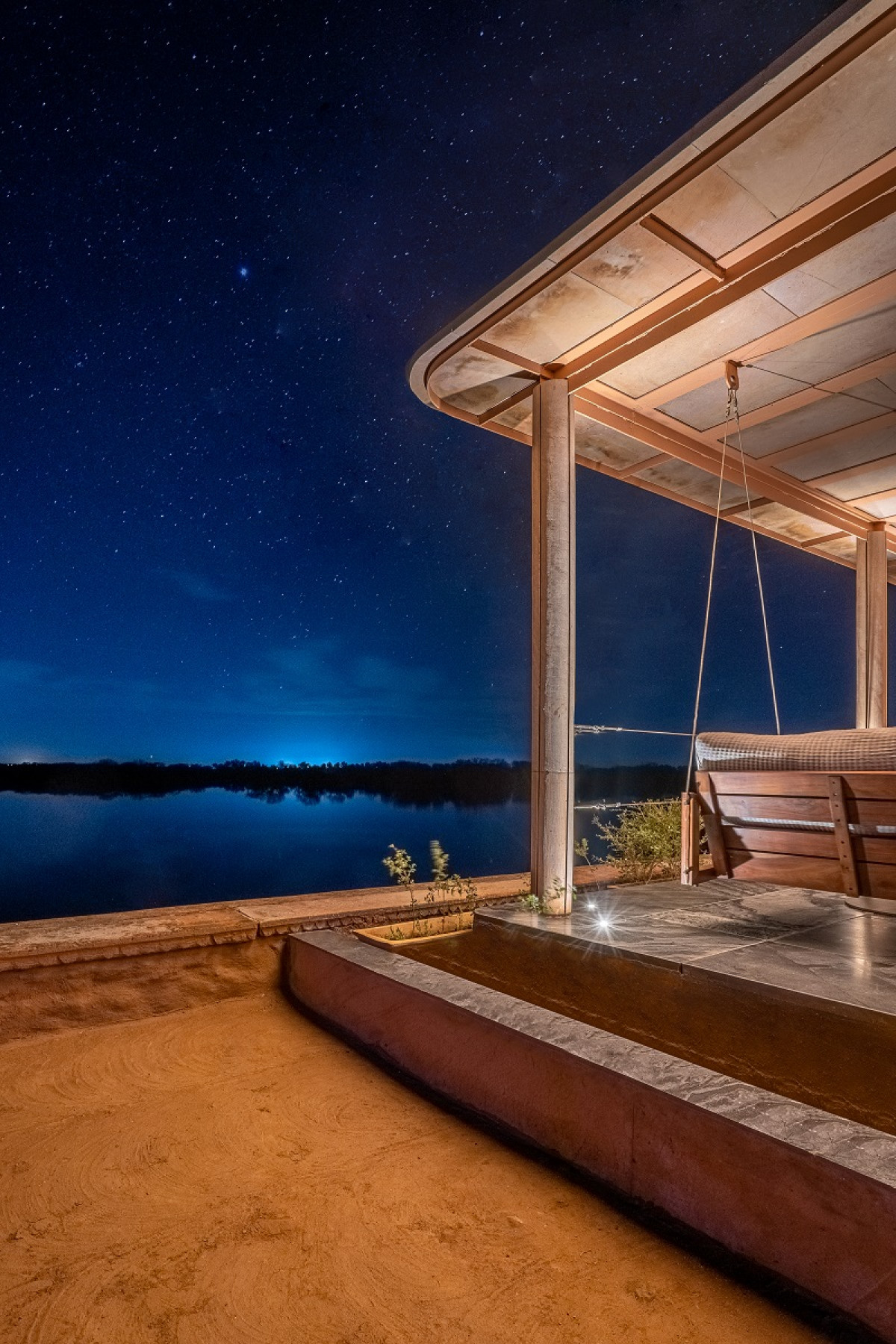

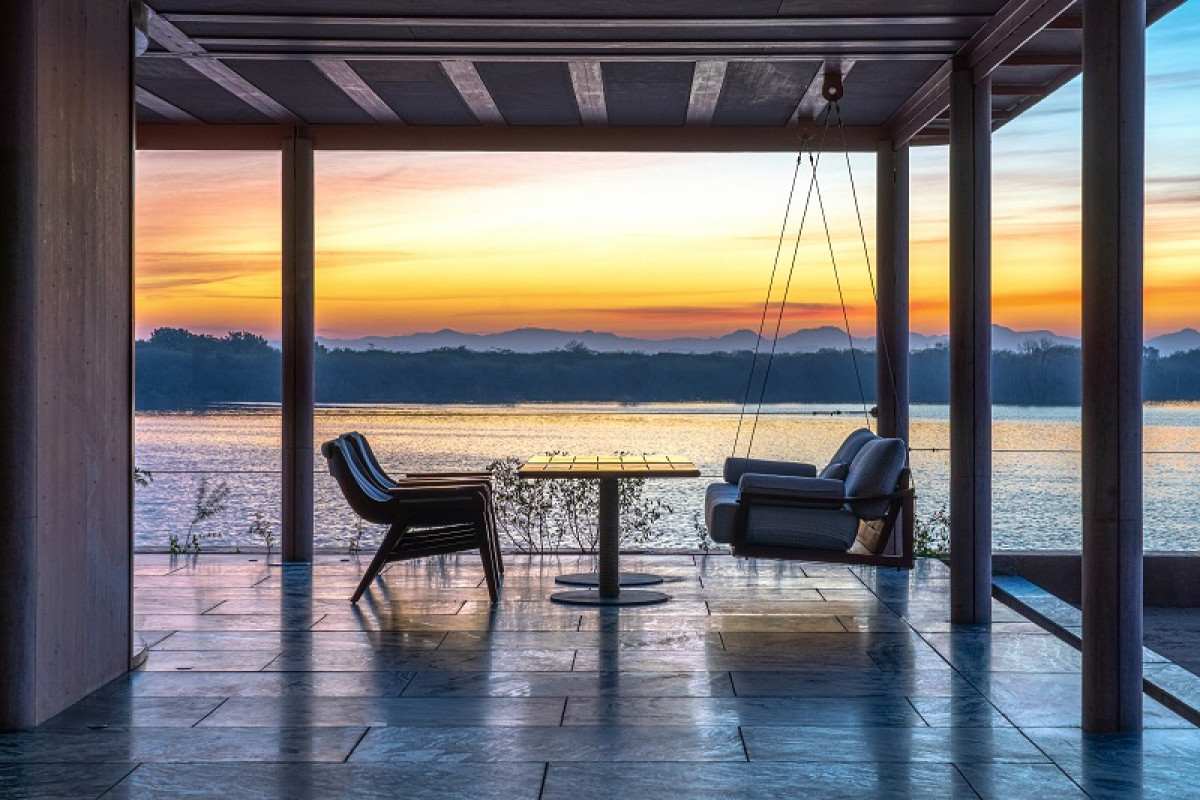

The underlying design principle for the camp was to frame the outdoor experiences along both edges of the pods. The sunrises over the lake and sunsets into the forest become an integral part of the guest experience. Thus, each pod hosts spill-outs for outdoor lounging. The structure is made of a lightweight metal weave that springs off pile foundations made of precast concrete hume pipes with compacted waste rubble.

Also Read | 7 Innovative ways to place plants in your home to make the environment refreshing

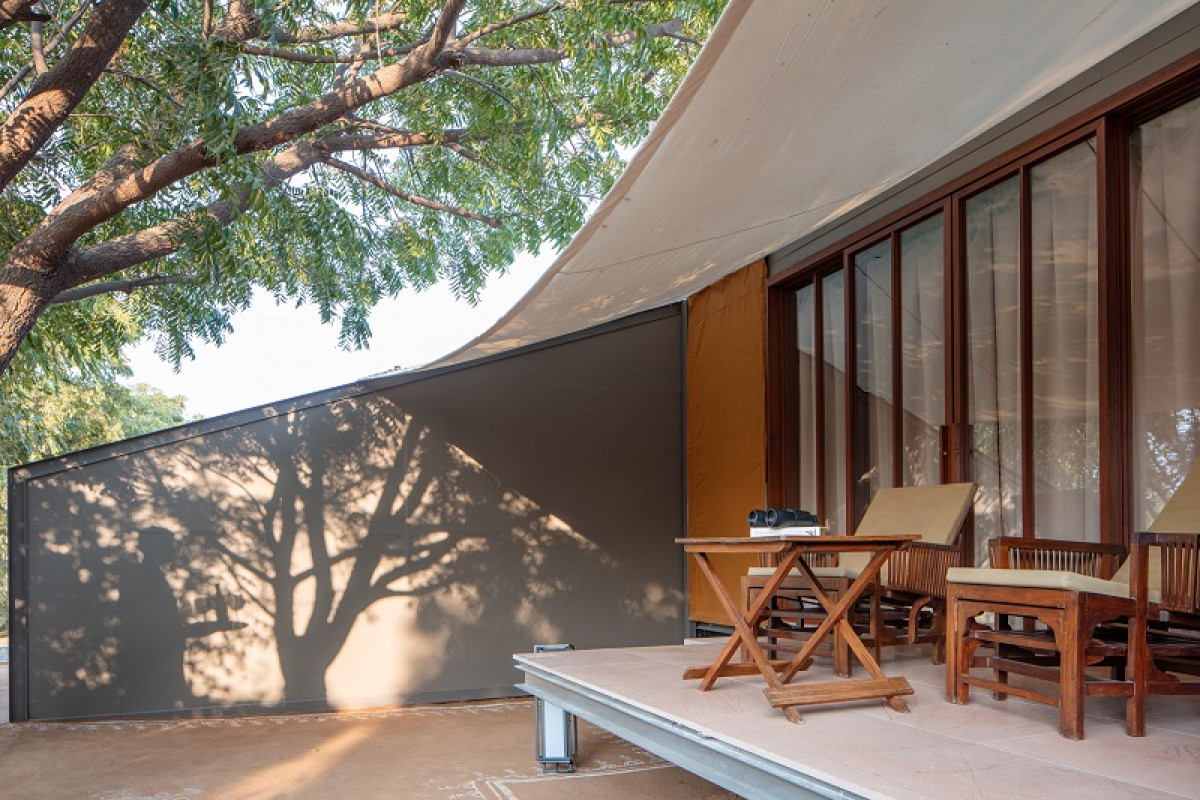

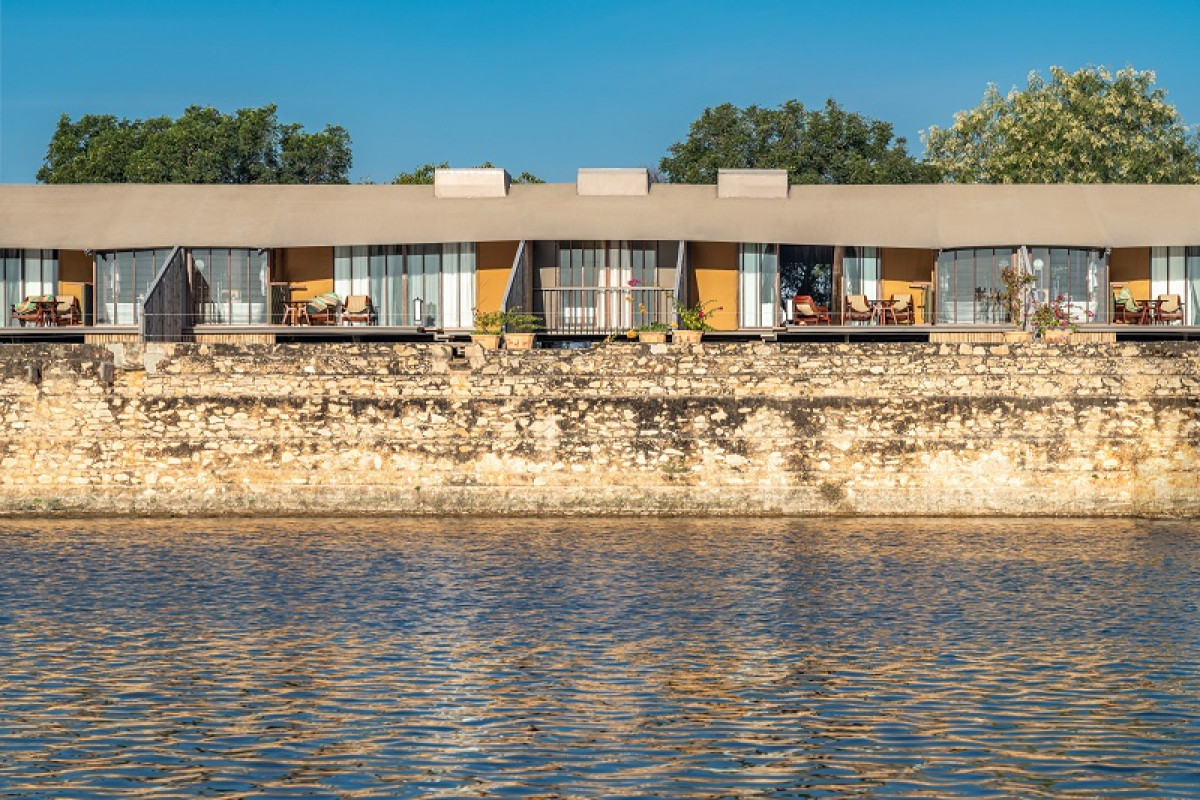

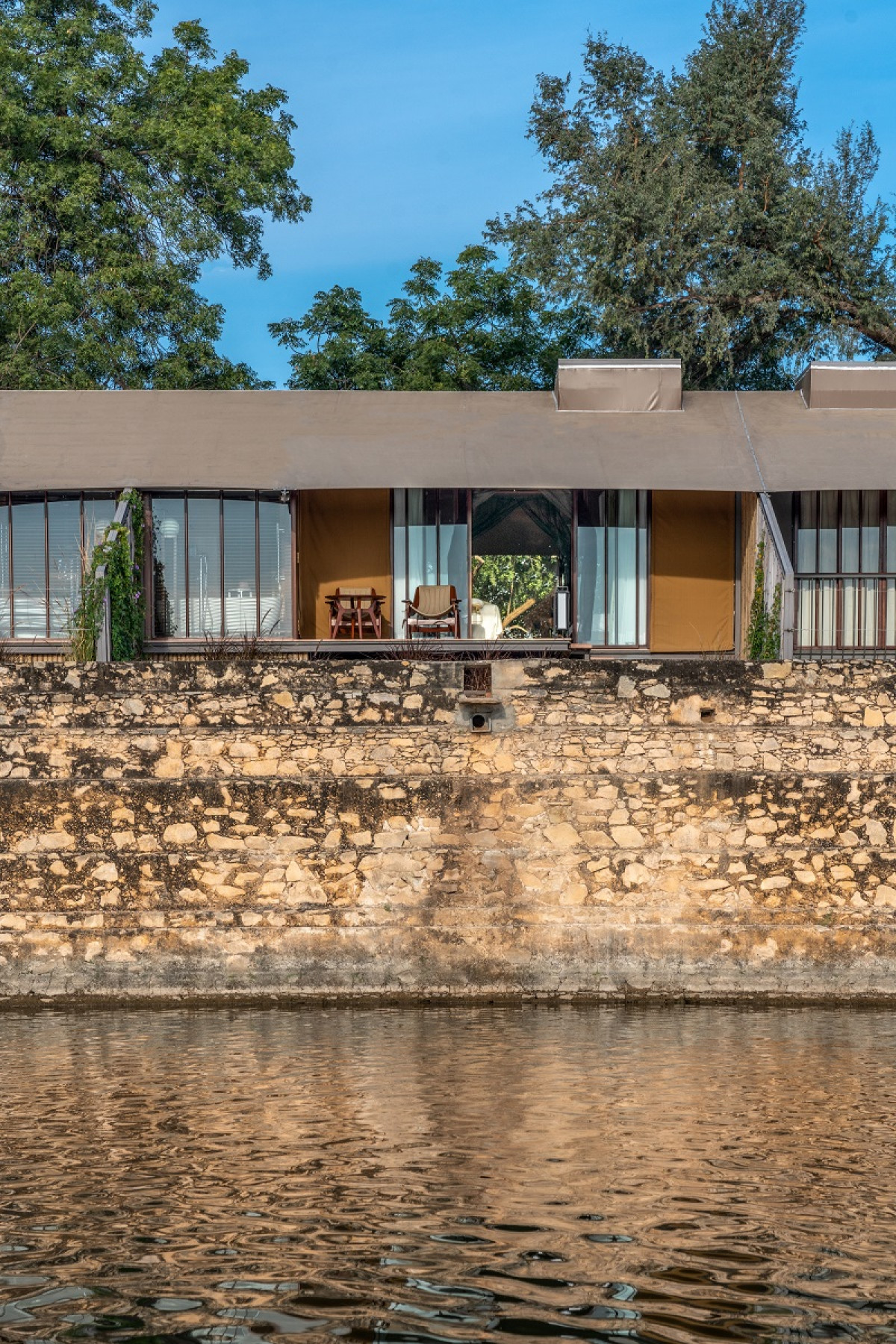

The pods are separated by metal screens with bamboo infill extending towards the edge of the embankment—enabling privacy while seamlessly integrating the diversity of views—from the lake on the east to the farms and forest along the west. Thermally and acoustically insulated fibre cement board panels in the walls and roofing system form the shell for each pod.

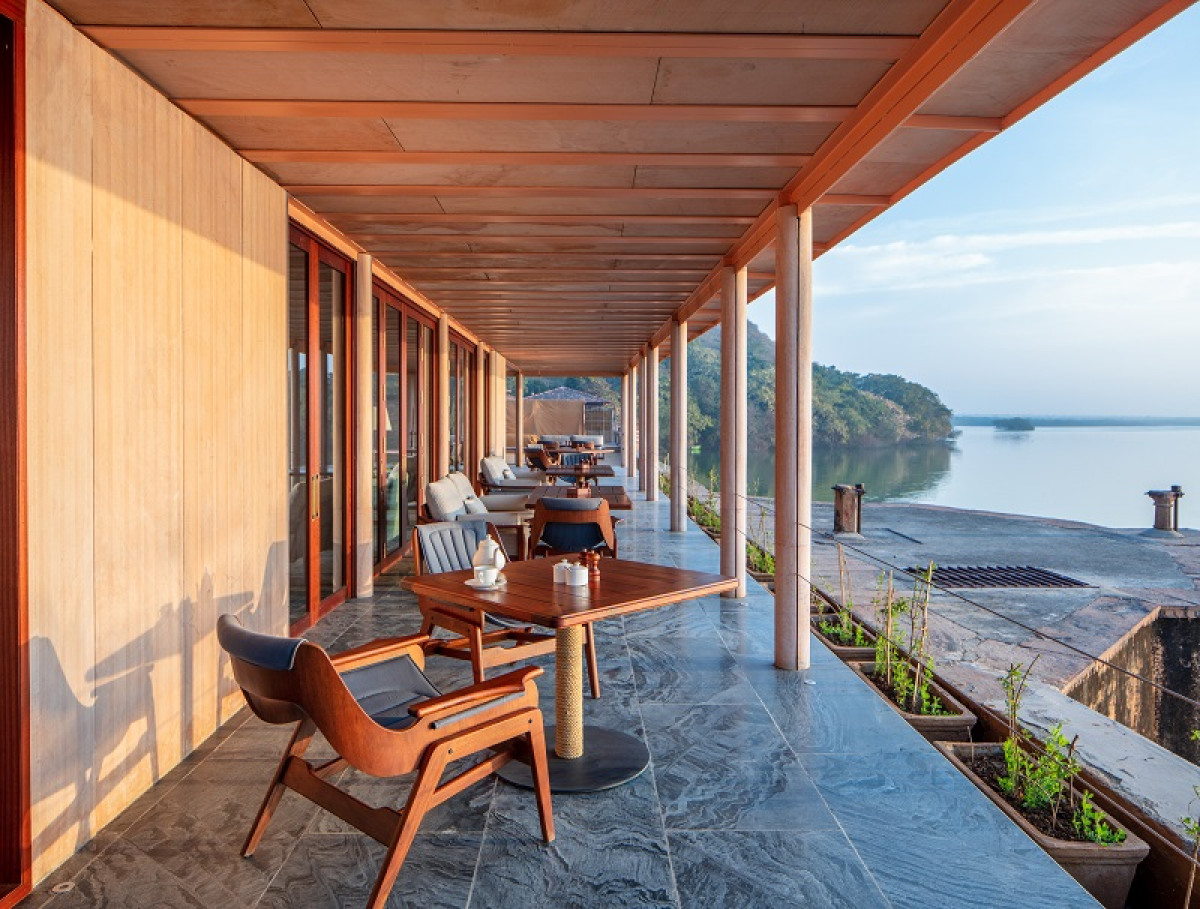

A continuous tensile fabric canopy stretches over the lightweight partitions spanning the entire length of the structure, providing water proofing and added insulation. This secondary membrane extends beyond the footprint of the pods to create shaded verandahs overlooking the surrounding panorama. Retractable skylights installed within the roof capture the changing kaleidoscope of diurnal and nocturnal variations.

The space warranted an equally impeccable interior quotient. Thus, Studio Lotus teamed up with printmaker Dhvani Behl's studio, Flora For Fauna to bring a sense of play into the interiors of the stilted tented pods.

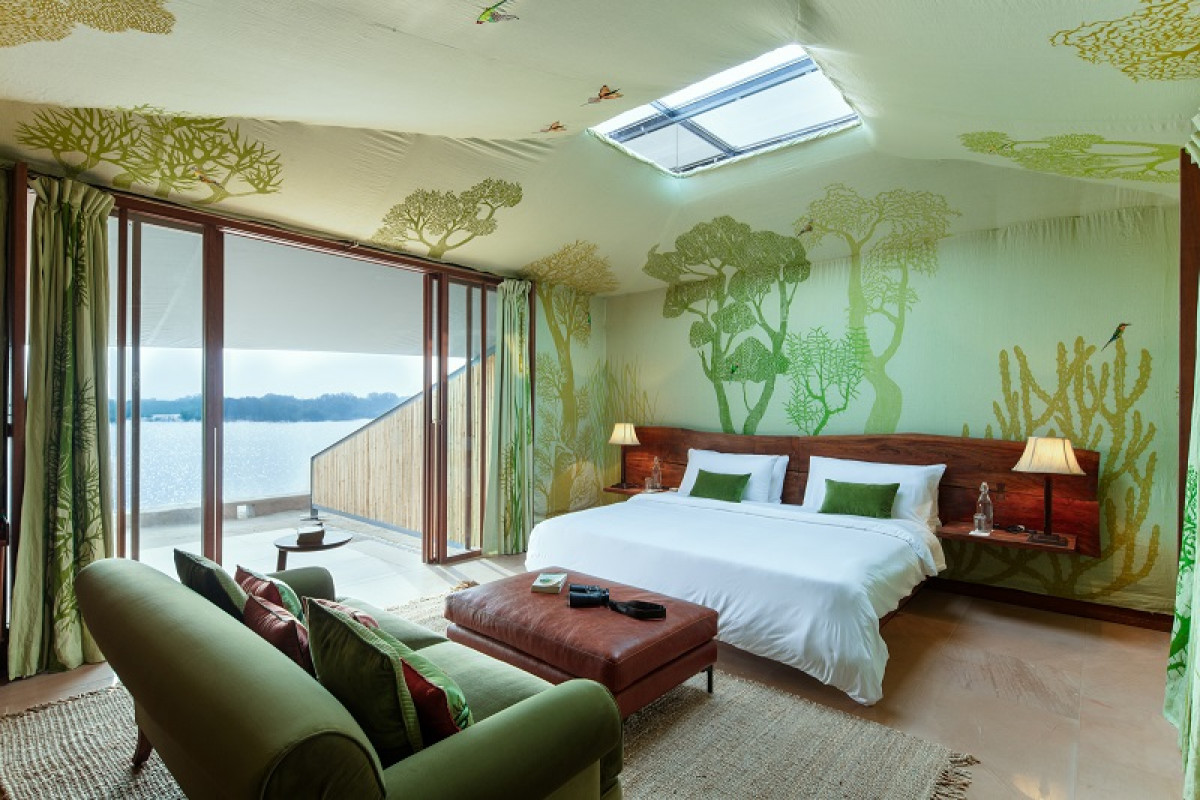

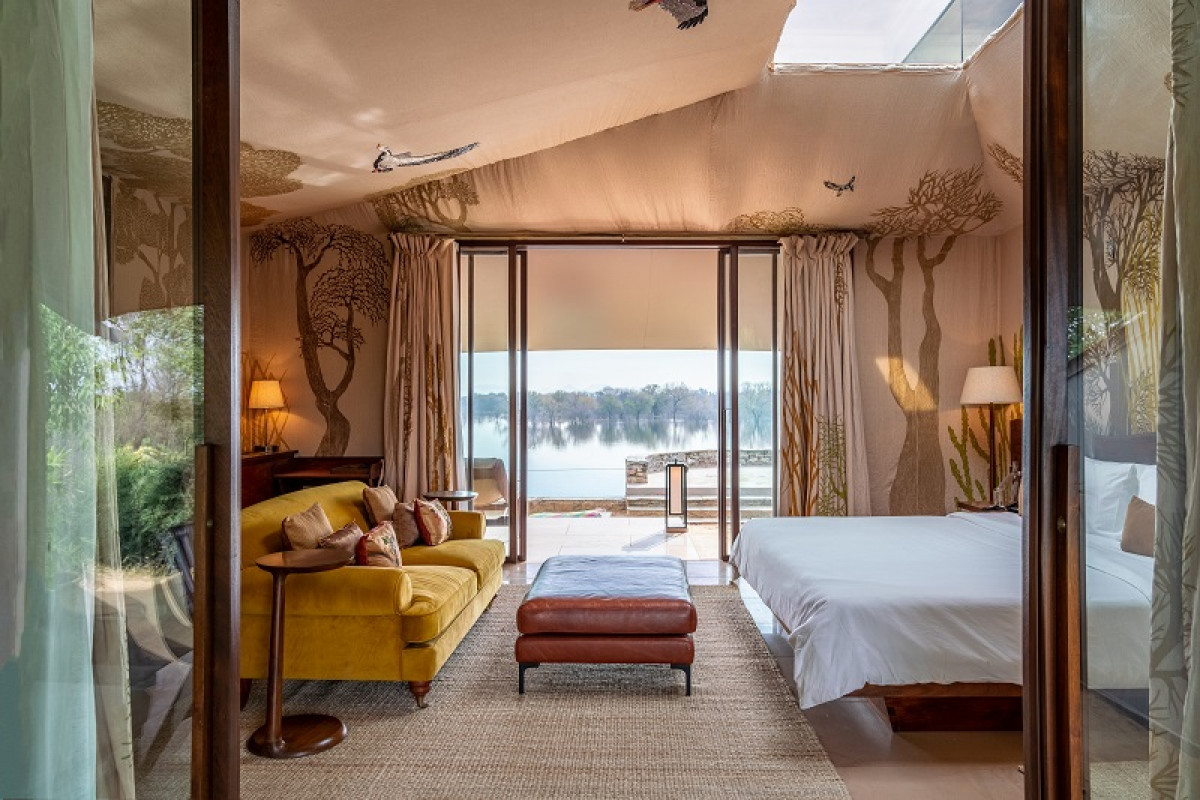

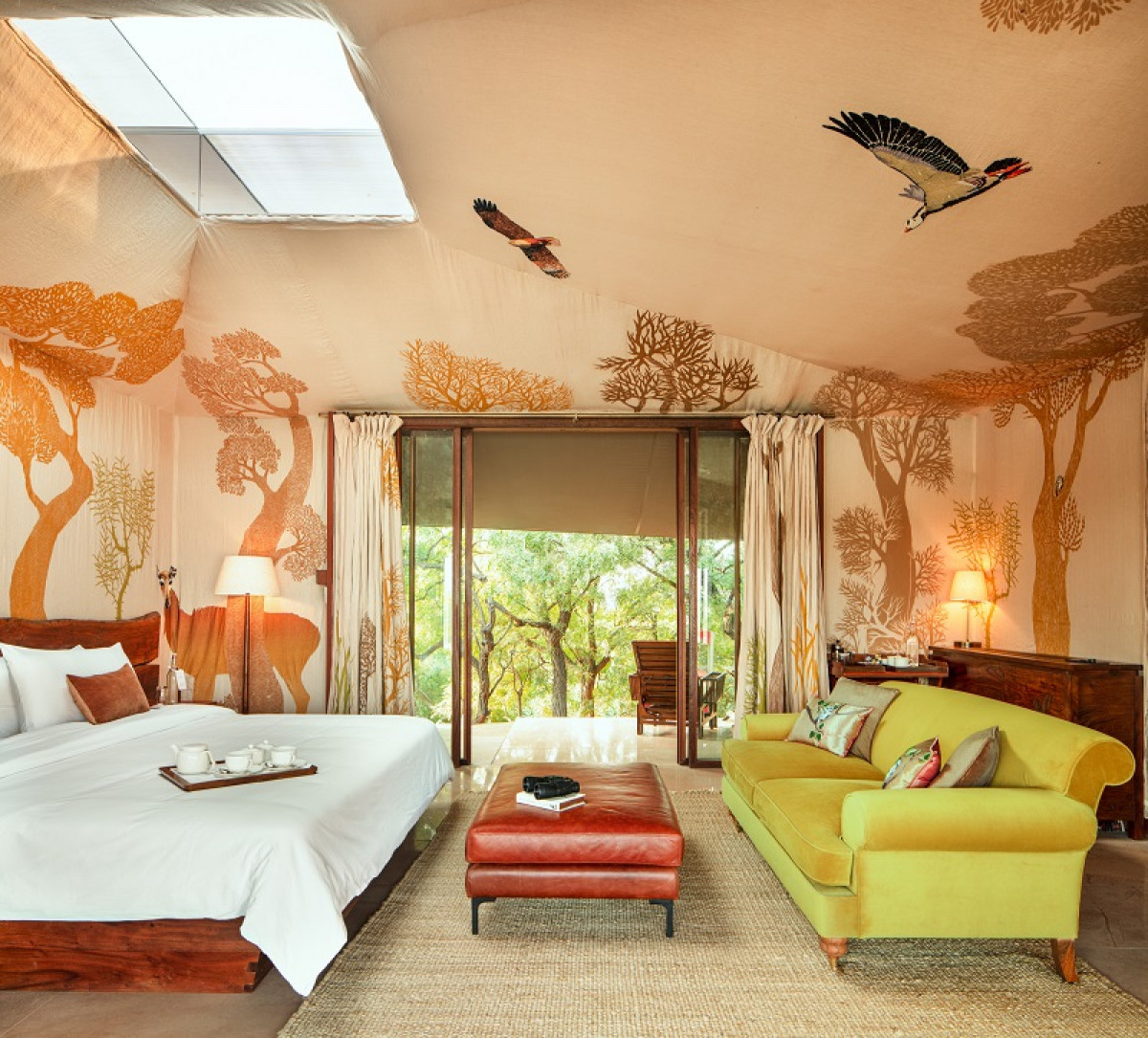

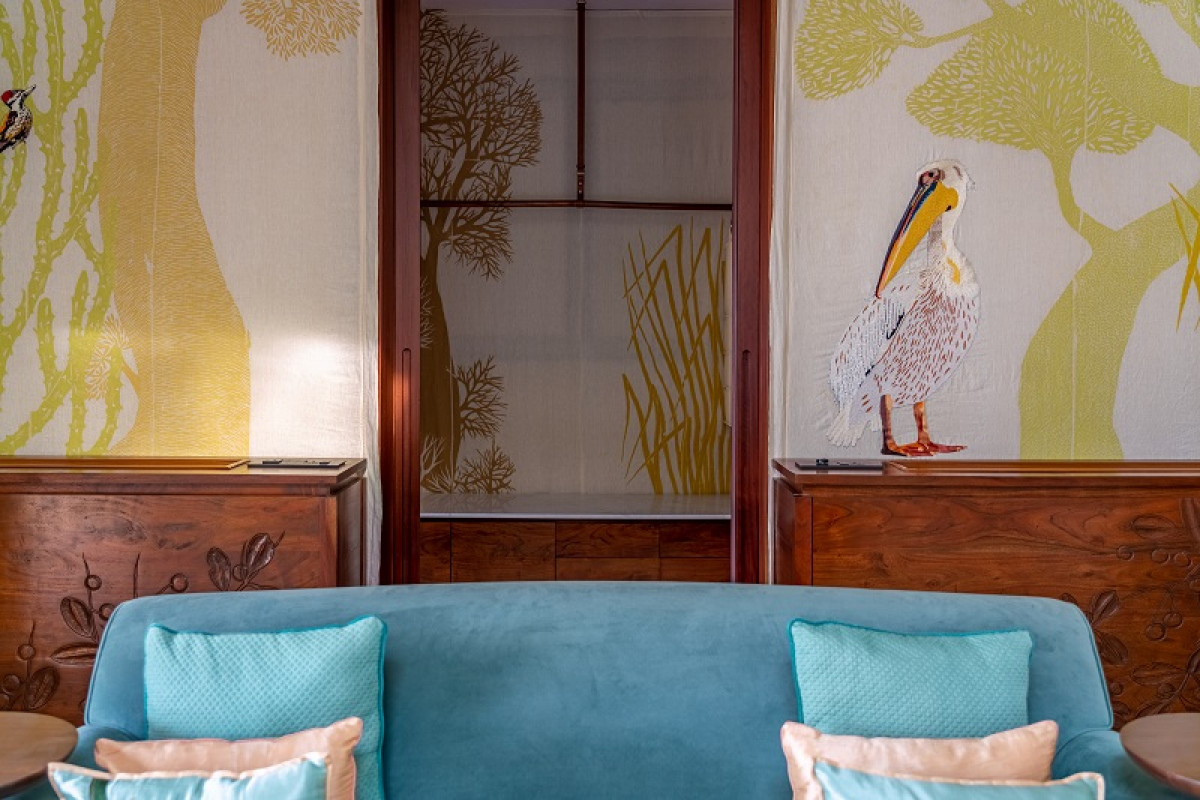

Borrowing from traditional woodblock printmaking, and uniting it with regional influences, giant woodcuts were hand-printed on pre-stitched fabric lining the tented pods to depict babul and neem trees as well as native wildlife. The surfaces also feature hand-embroidered birds such as pelicans and bee-eaters, perched atop the trees, and in flight. The fabric-lined pods offer acoustic comfort and serve as a vibrant canvas celebrating the diversity of plant and animal forms from the region—manifesting as an extension to the sightings observed in the environs.

Also Read | 10 trendy office decor tips to make your workspace lively and energetic

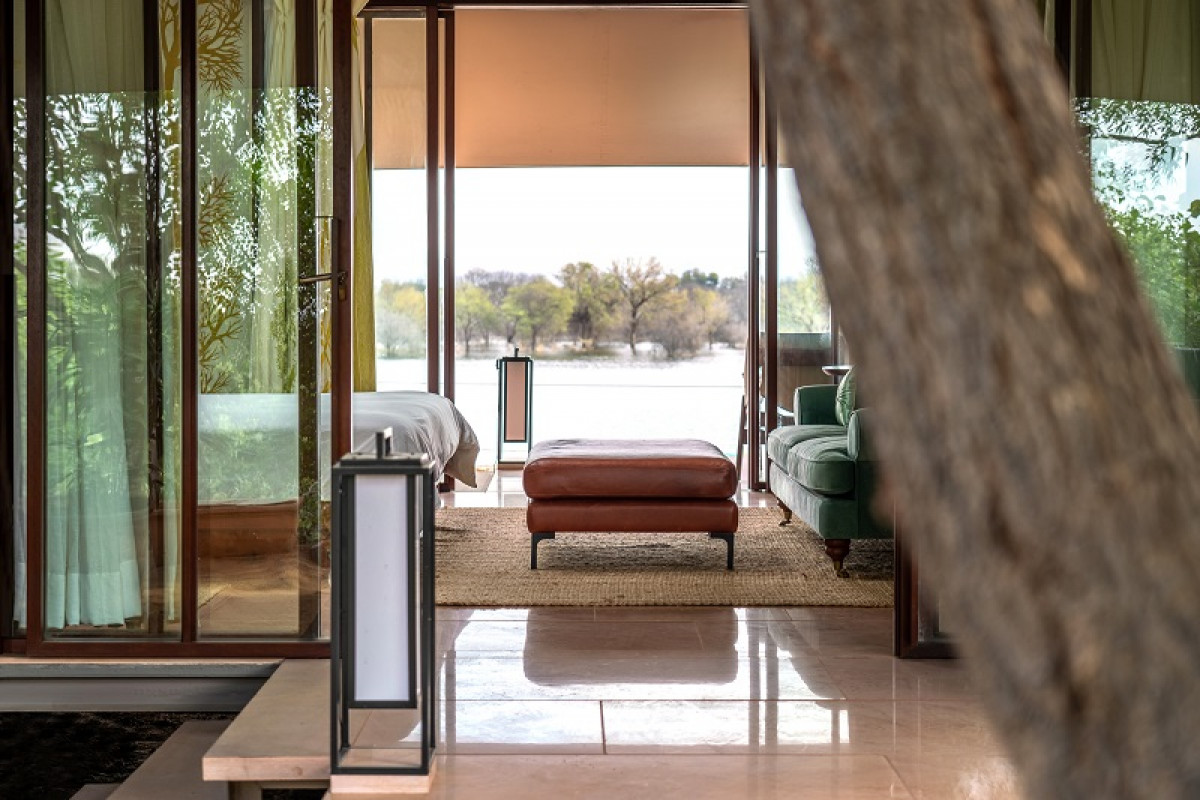

The interiors feature a bedroom with an attached study and teak furniture. En-suite bathrooms comprise a walk-in wardrobe, demarcated by dry and wet areas and a vanity; private, free-standing bathtubs are placed against glazed surfaces to afford views of the lake. Air-conditioning for when the space needs to be closed-off is enabled via floor-mounted AC units, which also serve as hand-crafted wooden consoles. Along with bespoke furniture by Mangrove Collective, these interventions create an evocative foil that heightens guests’ connection with their surroundings.

The Baradari Restaurant

Plan and form:

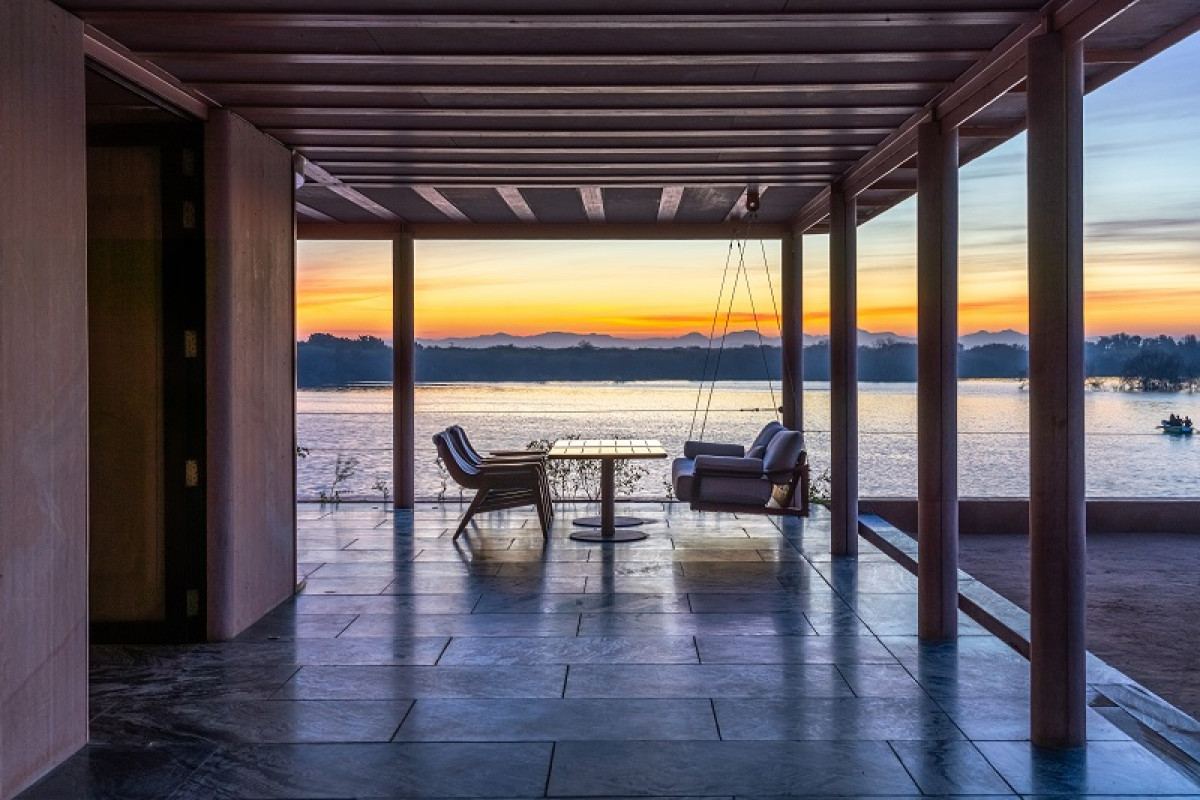

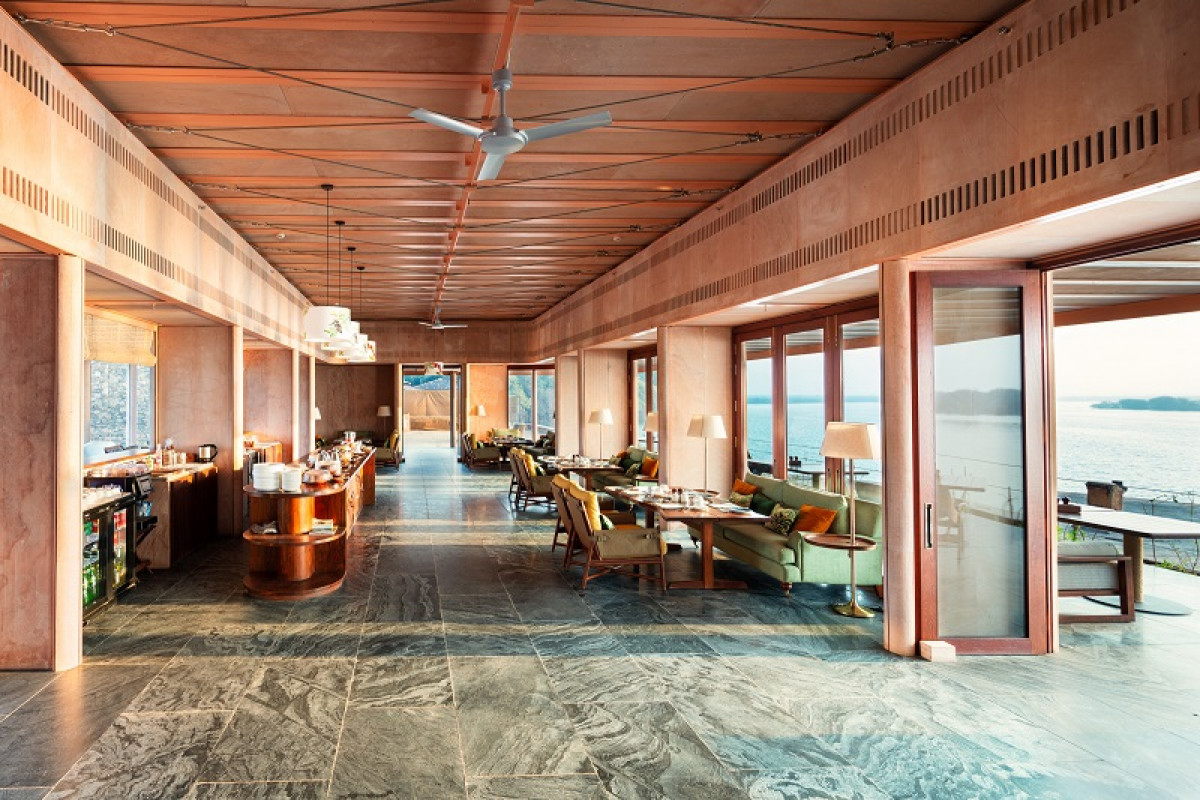

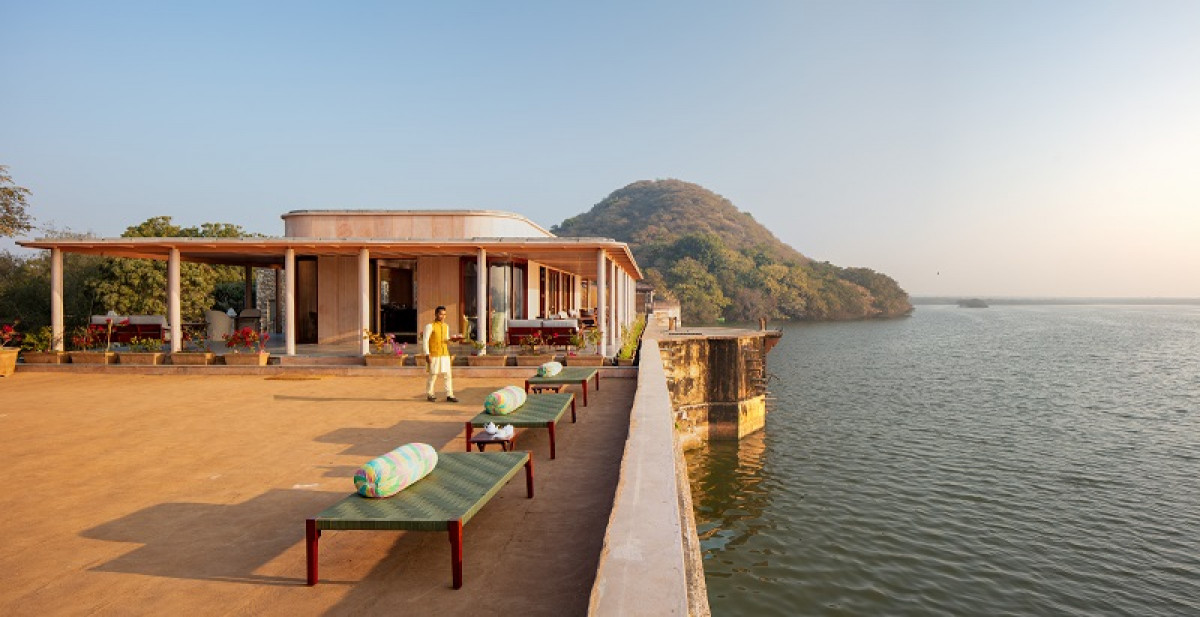

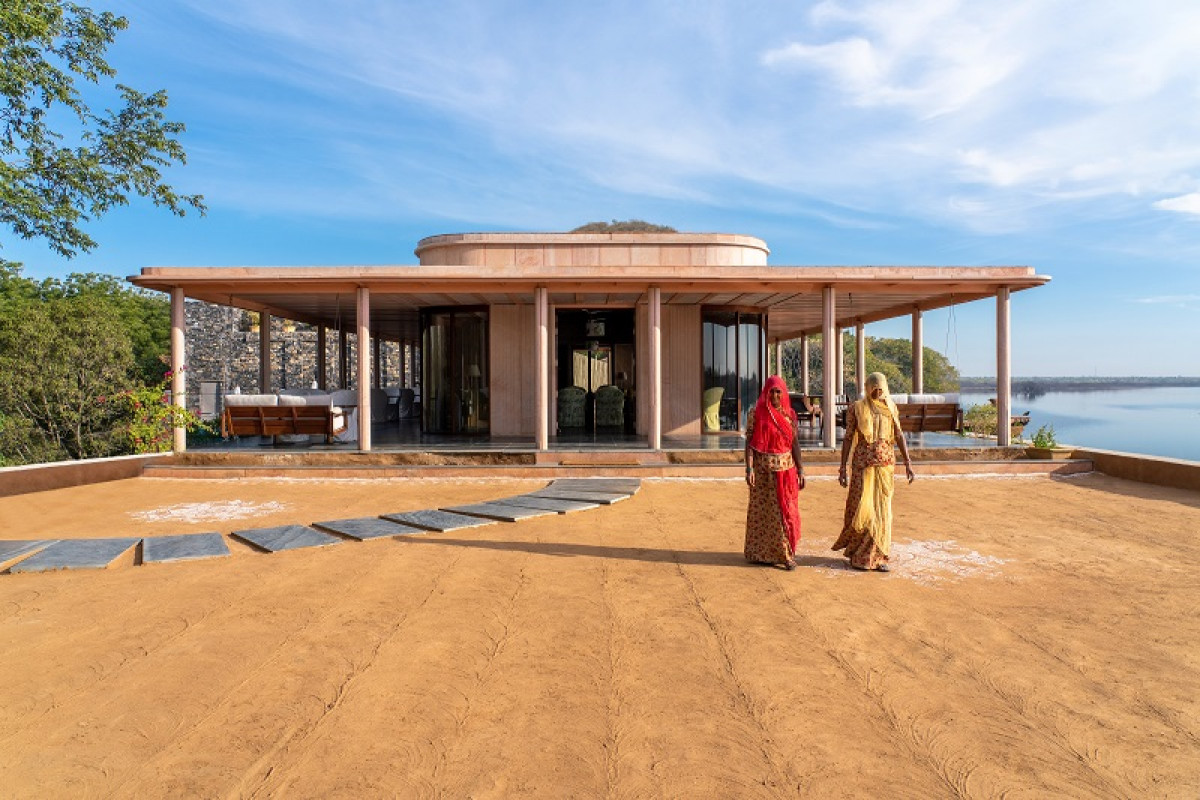

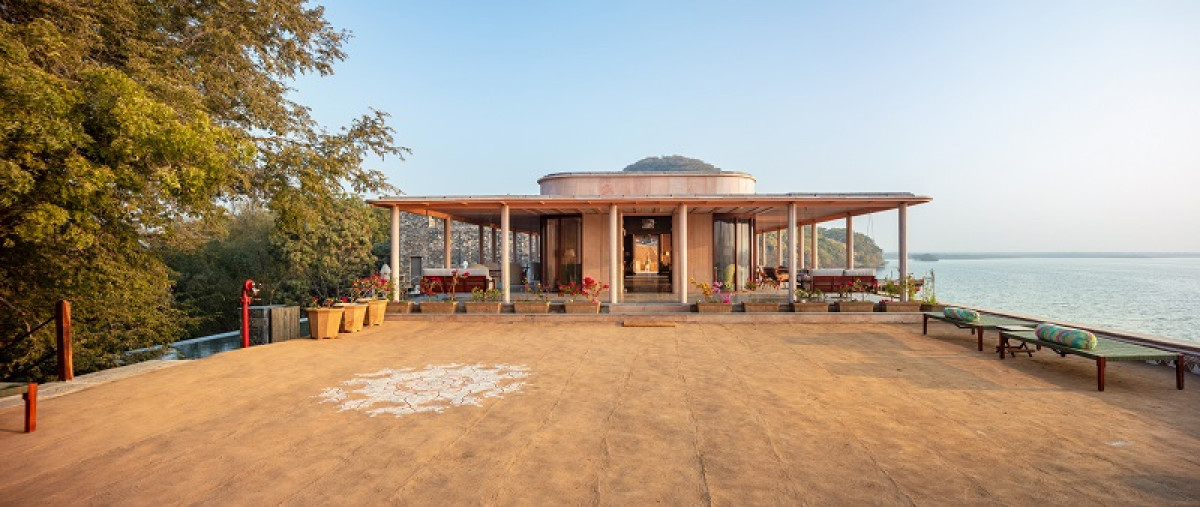

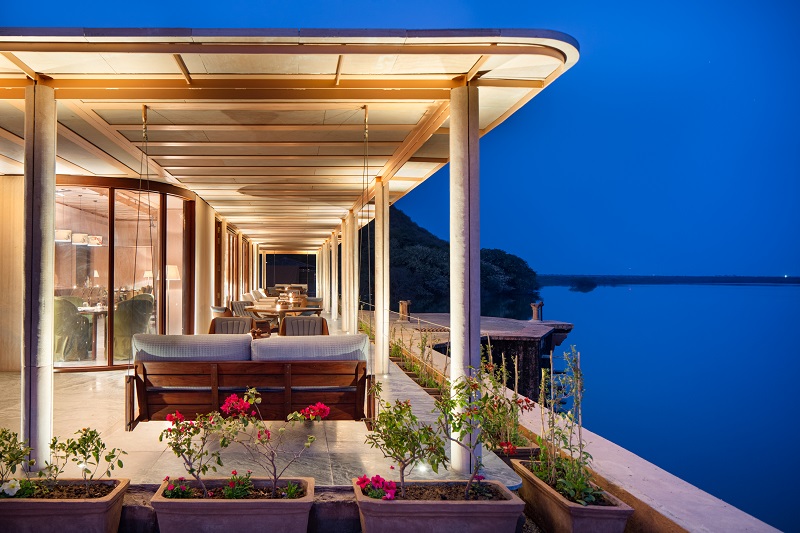

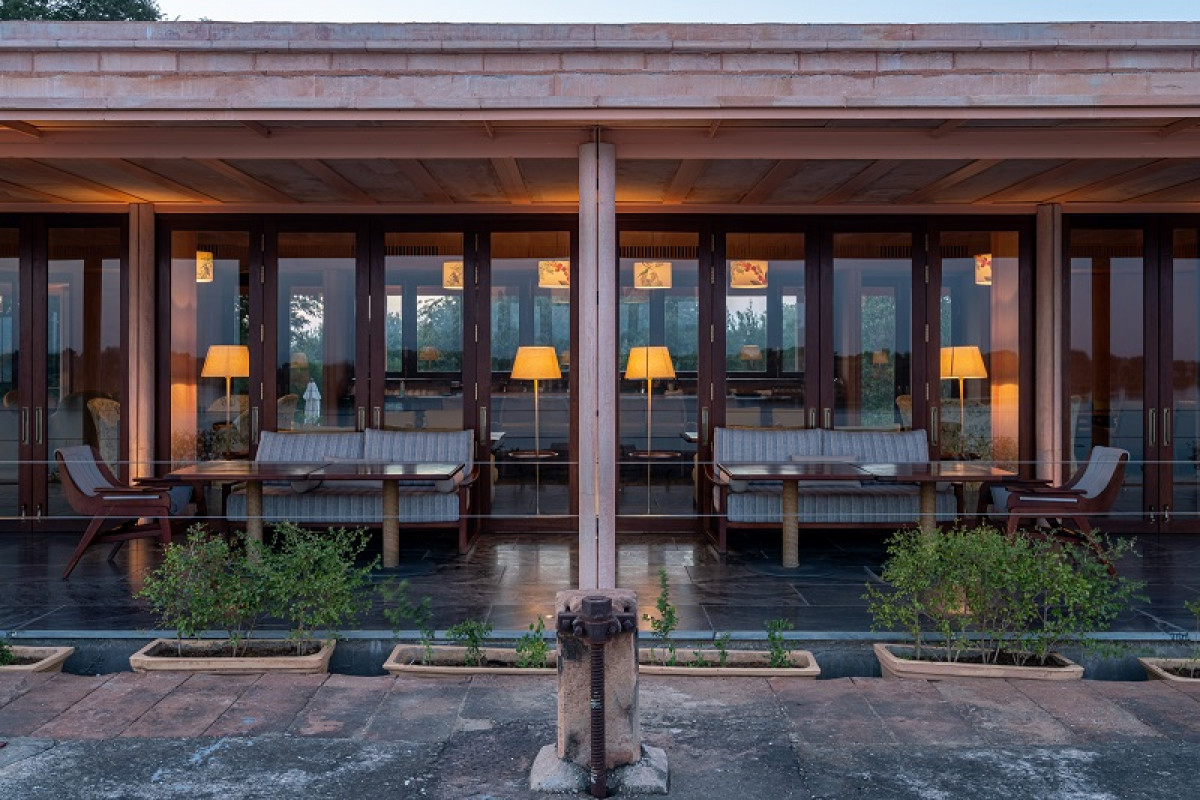

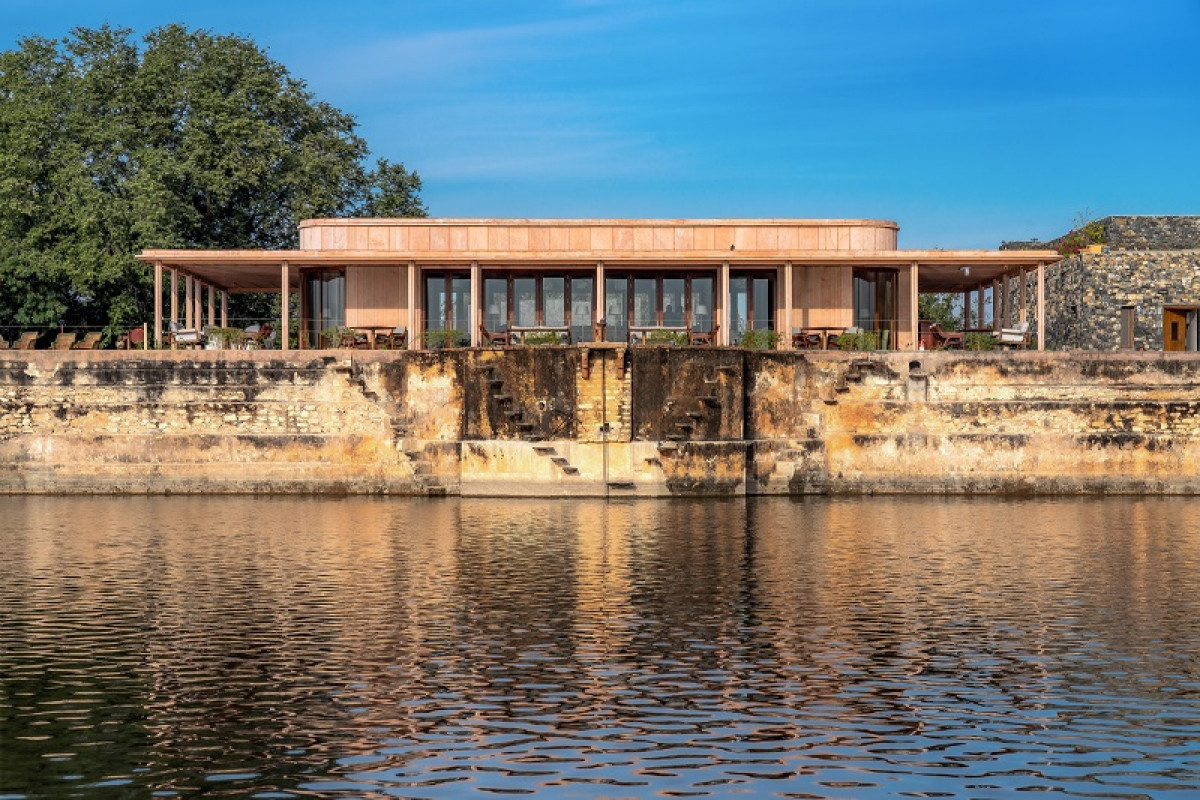

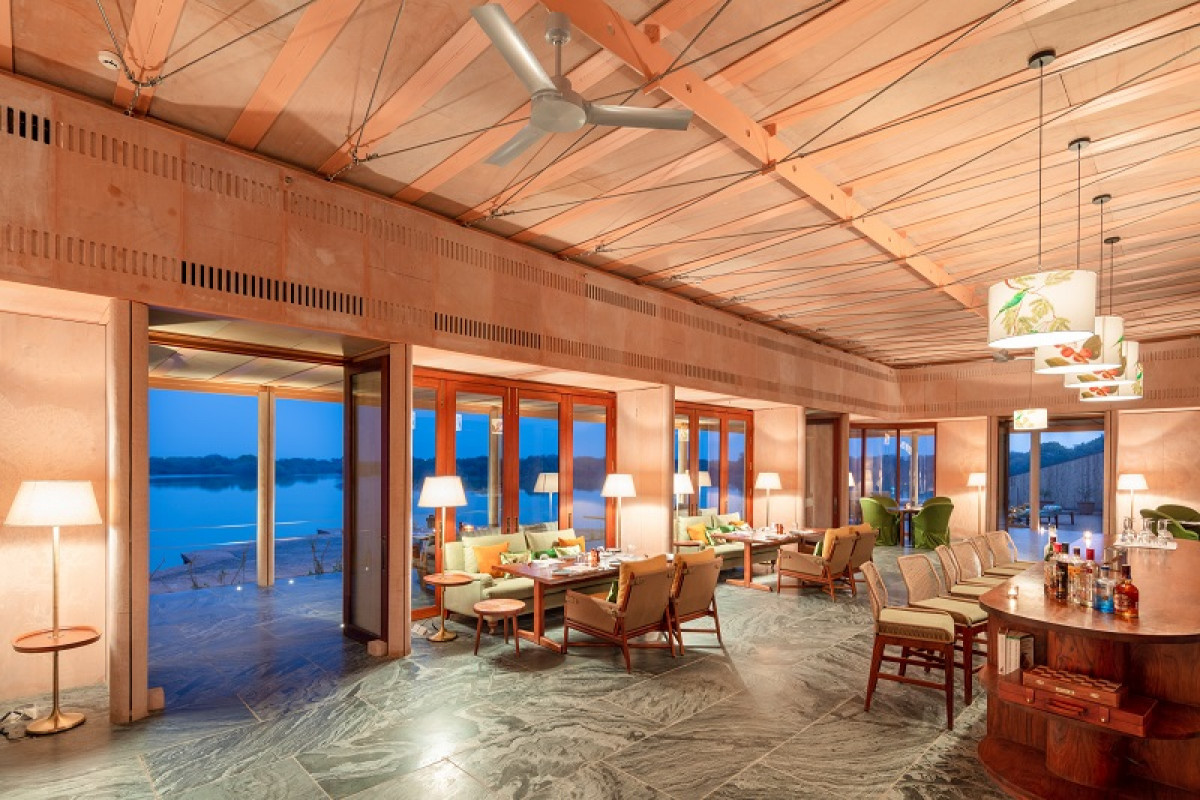

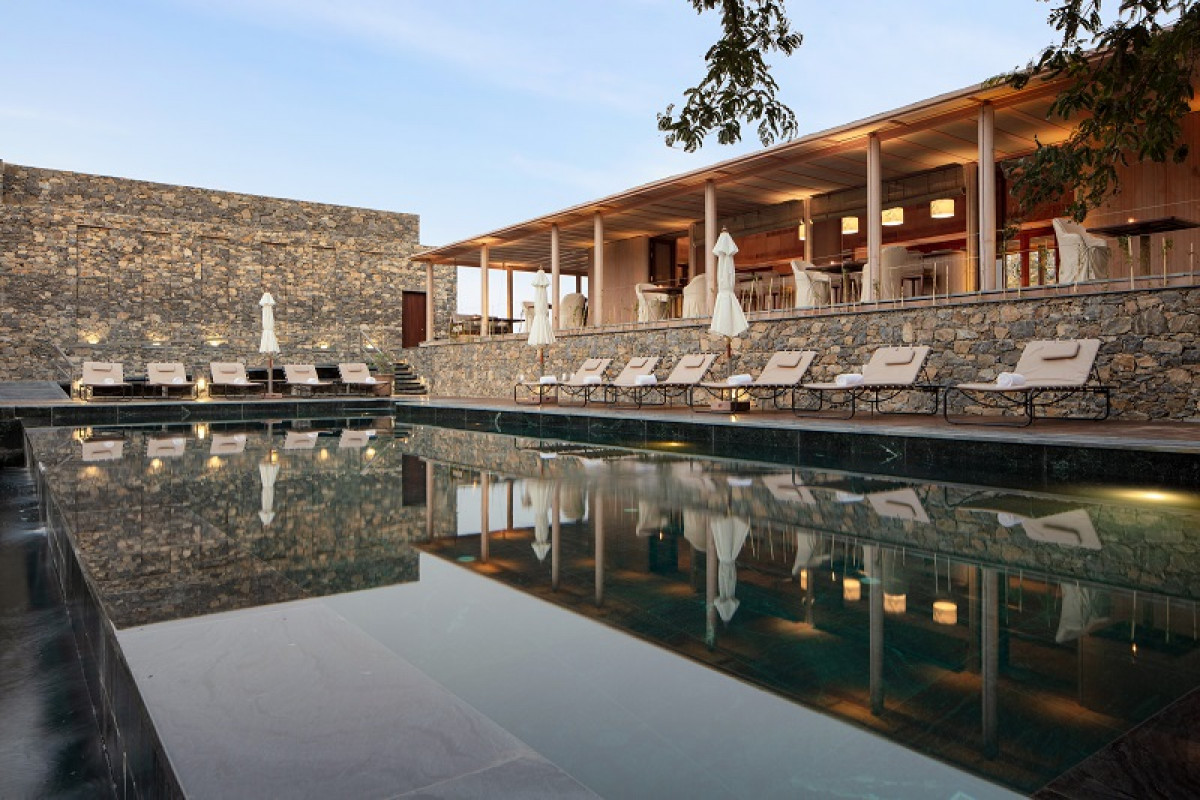

Designed using a lightweight metal frame dry mounted with hand-dressed stone infills, the Baradari is a contemporary expression of the Rajputana twelve-pillared pavilion. Housing the restaurant for the new property, the Baradari creates a seamless connection between the two key experiences offered by the site—the panoramic views of the lake, and the serenity of the forest belt. It does so with its naturally-ventilated wraparound verandah extending up to the embankment walls on one side and stepping down onto the deck lining the private, all-season infinity pool on the other. Its softened edges maximize outdoor vistas and quietly nod to the Art Deco sensibilities of the bygone era of the British Raj when nobles entertained Western dignitaries with sumptuous feasts and hunting expeditions in tented lodges. The verandah offers al fresco dining; the interiors, in addition to dining pockets, features a buffet counter that doubles as a bar that also serves the swimming pool deck.

Structural Integrity and Services:

The construction is a grid of metal columns supporting a double-ring structural system featuring insulated Chopar stone walls capped by a traditional tukdi (stone slabs installed on a metal framework) roof. The hollow circular columns are composed of L-sections clad in hand-dressed stone with lightweight steel cables running through them as lightweight safety balustrades. Cable trusses maintain the structural integrity of the system by holding the central members in place, allowing for open, column-free spaces.Air conditioning ducts are concealed within the roofing system, an unobtrusive intervention that further heightens the scale and aesthetic impact of the interiors.

Also Read | Take a glance of Parineeti Chopra’s home to get some pristine views of the Arabian sea and more

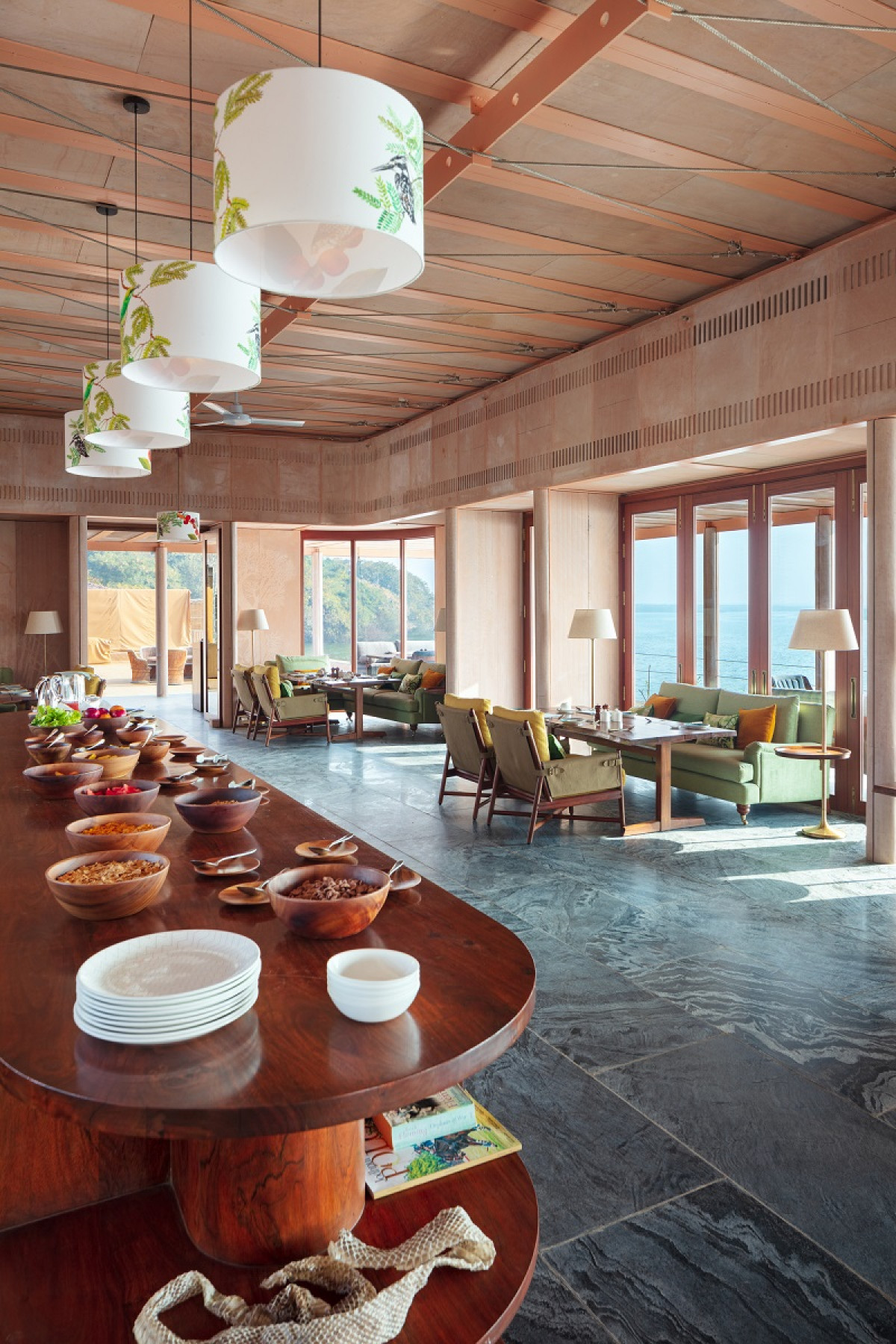

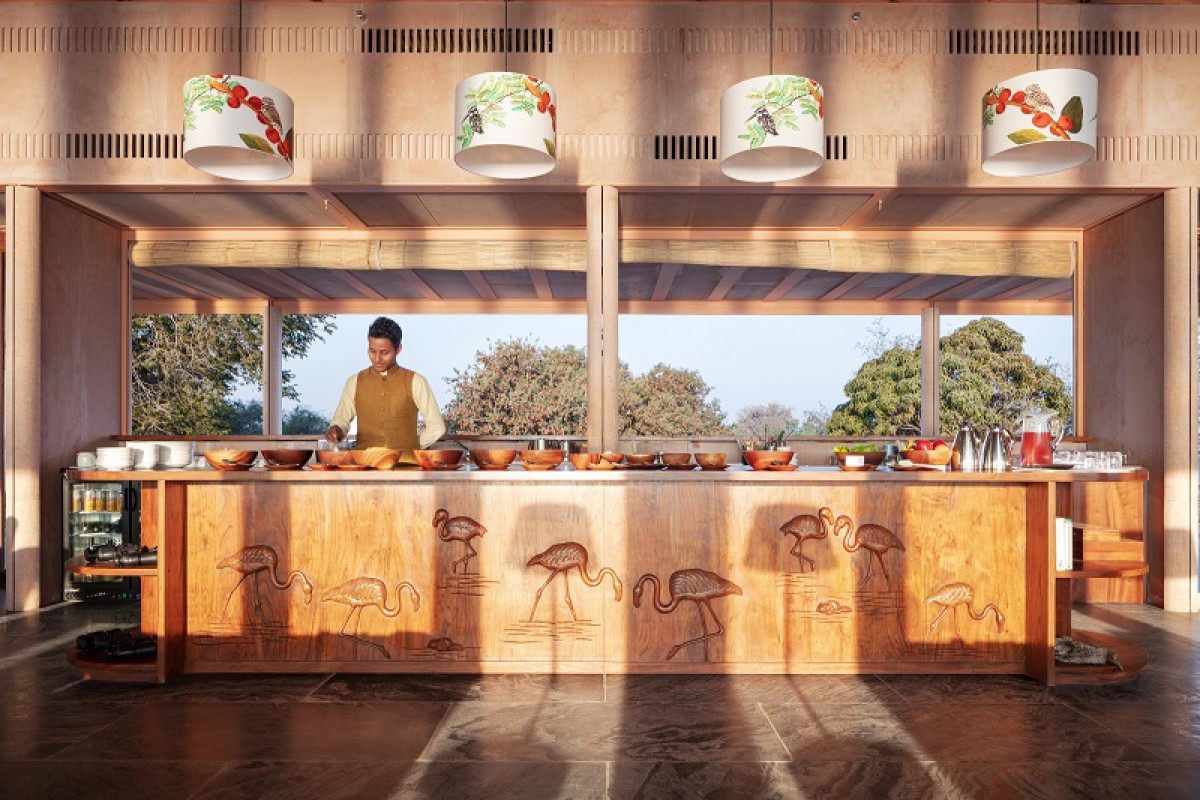

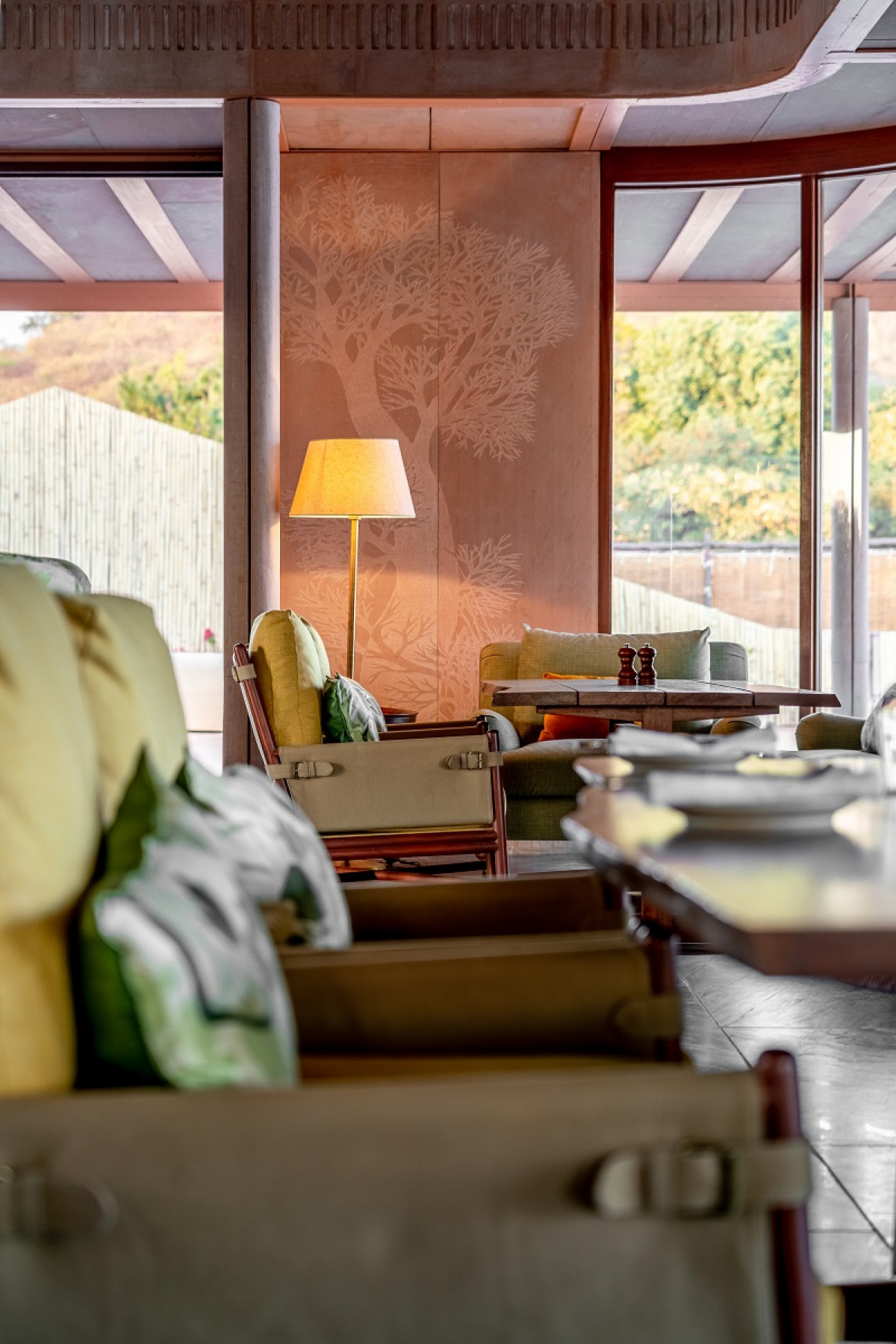

The interiors channel a soft and restrained material palette composed of hand dressed local Chitar stone to heighten the element of understated luxury. Dhvani Behl’s woodblock printed patterns are translated into stone panels—chiselled by hand to depict the idyllic landscape and biodiversity. Upholstered country-style furniture, fashioned out of locally-sourced Acacia (kikar) wood marks a subtle counterpoint to the pink stone surfaces. The bar counter features elaborate hand carved relief work depicting a flock of flamingos; the overall design expression conjures up images of the surrounding landscape while injecting the space with a series of tactile gestures.

Little Things Matter

To establish an intimate connection with the outdoors while being mindful of the surroundings, the design team conceptualized a system of low-impact foundations and lightweight superstructures for the project. Keeping in mind environmental concerns, the team set out to construct almost entirely without cement, employing a dry construction methodology and using lime as a binder wherever minimal wet work was required.

“A lot of thought went into minimisation of the air conditioning footprint of the property and creating a large number of shaded and naturally ventilated areas thereby framing the outdoor experiences along both edges of the pods with shaded decks for outdoor lounging. The sunrises over the lake and sunsets into the forest become an integral part of the guest experience,” Amnrish asserts.

Also Read: Seven plants for your bedroom to keep the environment fresh and healthy

“Of paramount concern was the site's sensitive ecological context, which made it imperative that all additions be erected on minimal environmental footprint. To establish an intimate connection with the outdoors while being mindful of the surroundings, we conceptualized a system of low-impact foundations and lightweight superstructures for the project. Keeping in mind environmental concerns, we set out to construct almost entirely without cement, employing a dry construction methodology and using lime as a binder wherever minimal wet work was required.”

Why it features on our list?

As Ambrish points out, “The project has been planned in a manner that allows guests to be totally connected to the unique environs while being totally private and ensconced in restrained, handcrafted luxury. The underlying design principle for the camp was to frame the outdoor experiences along both edges of the pods. The sunrises over the lake and sunsets into the forest become an integral part of the guest experience. Thus, each pod hosts private spill-outs for outdoor lounging.”

For the staycation lovers, everything from site planning to architecture and interior design, has been optimised to be as compact as possible so that nature comes to the forefront, allowing guests to immerse themselves in the key reason to be here—to experience wildlife, the serenity of the lake, the unique sunrises and sunsets.

The site reveals itself in layers, uniting the experience of discovery with an element of surprise, by working in harmony with the context and tying numerous touchpoints to establish meaningful connections. Retaining and enhancing the essence of the original property, the camp weaves in the biodiversity of its setting with resilient ways of building.

Also Read: 10 Useful Vastu tips for your home to attract positive energy to every corner of it

The porous and permeable envelope of the tents, the expression of flora and fauna through woodcut and hand-embroidery, and the skylights with retractable blinds elevate guests’ connection with the surroundings while simultaneously providing the opportunity to secure themselves from inclement weather conditions.

Factsheet:

Name of Project: Raas Chhatrasagar

Location: Chhatrasagar Lake, Nimaj District, Rajasthan

Address: Sutharo Ka Bass Rd, Gulab Sagar, Jodhpur, Rajasthan 342001

Name of Client: Walled City Hotels / Mr. Nikhilendra Singh

Design Firm: Studio Lotus

Design Team: Ambrish Arora, Ayesha Hussain, Deepesh Harbola, Pranvi Jain

Site Area: 20,000 sqft

Super Area: 6 Acres

Photographer: Studio Noughts & Crosses | Andre J. Fanthome and Avesh Gaur

Collaborators: Furniture: Mangrove Collective | Textile Design: Flora For Fauna | Manjunath BL, Build Kraft India
